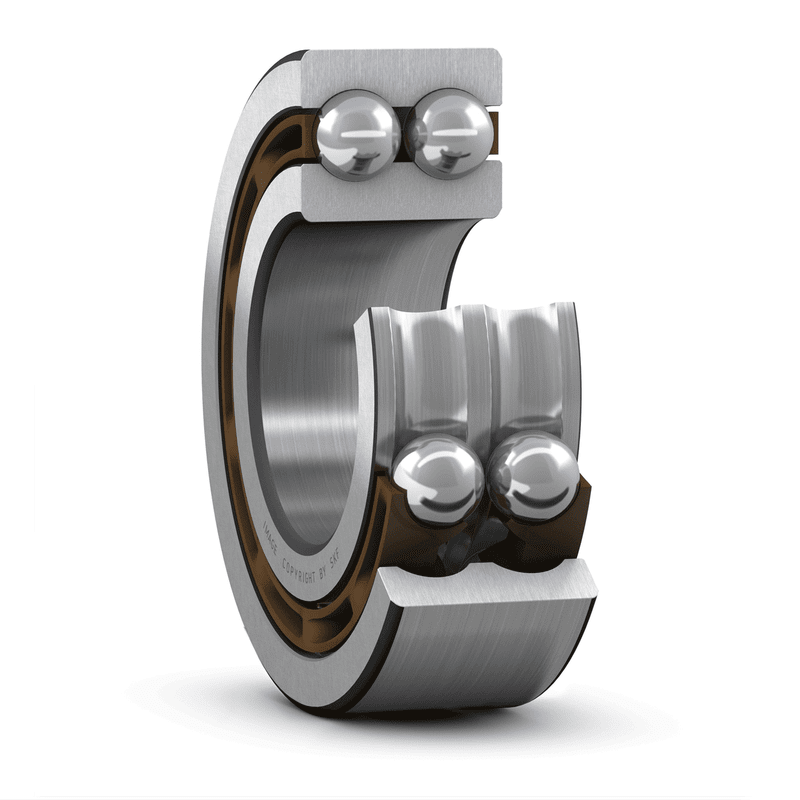

Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
35 mm
|
|
|---|---|---|
| D |
80 mm
|
|
| B |
31 mm
|
|
| d1 |
≈ 49.5 mm
|
|
| D1 |
≈ 65.4 mm
|
|
| r1,2 |
min. 1.5 mm
|
ABUTMENT DIMENSIONS
| da |
min. 44 mm
|
|
|---|---|---|
| Da |
max. 71 mm
|
|
| ra |
max. 1.5 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
50.7 kN
|
|---|---|---|
| Basic static load rating | C0 |
38 kN
|
| Fatigue load limit | Pu |
1.63 kN
|
| Reference speed |
14 000 r/min
|
|
| Limiting speed |
7 500 r/min
|
|
| Calculation factor | kr |
0.06
|
| Calculation factor | f0 |
13.1
|
MASS
| Mass bearing |
0.68 kg
|
|---|
