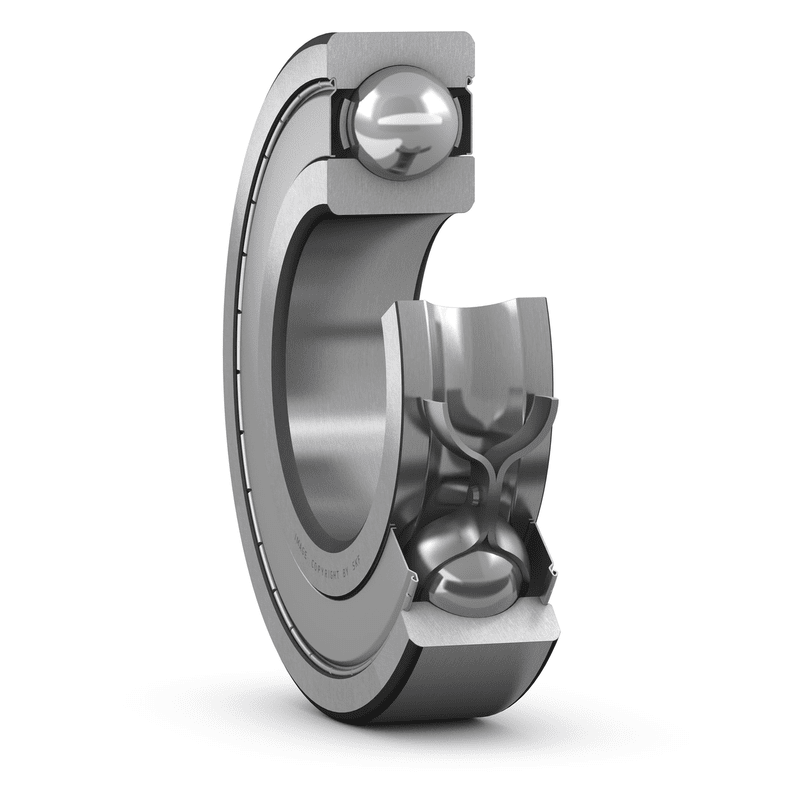

Deep groove ball bearings 6000-2Z/C3
SKU:BEA001467
Deep groove ball bearings 6000-2Z/C3
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
10 mm
|
|
|---|---|---|
| D |
26 mm
|
|
| B |
8 mm
|
|
| d1 |
≈ 14.8 mm
|
|
| D2 |
≈ 22.6 mm
|
|
| r1,2 |
min. 0.3 mm
|
ABUTMENT DIMENSIONS
| da |
min. 12 mm
|
|
|---|---|---|
| da |
max. 14.7 mm
|
|
| Da |
max. 24 mm
|
|
| ra |
max. 0.3 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
4.75 kN
|
|---|---|---|
| Basic static load rating | C0 |
1.96 kN
|
| Fatigue load limit | Pu |
0.083 kN
|
| Reference speed |
67 000 r/min
|
|
| Limiting speed |
34 000 r/min
|
|
| Calculation factor | kr |
0.025
|
| Calculation factor | f0 |
12
|
MASS
| Mass bearing |
0.02 kg
|
|---|
