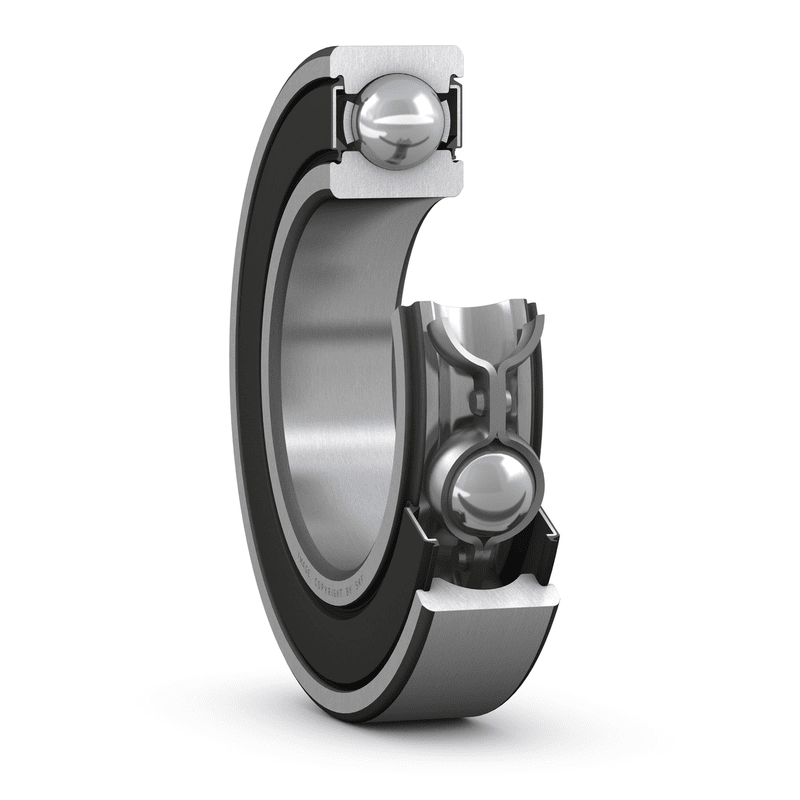

Deep groove ball bearings 609-2RSH/C3
SKU:BEA001048
Deep groove ball bearings 609-2RSH/C3
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
9 mm
|
|
|---|---|---|
| D |
24 mm
|
|
| B |
7 mm
|
|
| d2 |
≈ 12.85 mm
|
|
| D2 |
≈ 21.2 mm
|
|
| r1,2 |
min. 0.3 mm
|
ABUTMENT DIMENSIONS
| da |
min. 11 mm
|
|
|---|---|---|
| da |
max. 12.5 mm
|
|
| Da |
max. 22 mm
|
|
| ra |
max. 0.3 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
3.9 kN
|
|---|---|---|
| Basic static load rating | C0 |
1.66 kN
|
| Fatigue load limit | Pu |
0.071 kN
|
| Limiting speed |
19 000 r/min
|
|
| Calculation factor | kr |
0.025
|
| Calculation factor | f0 |
13
|
MASS
| Mass bearing |
0.015 kg
|
|---|
