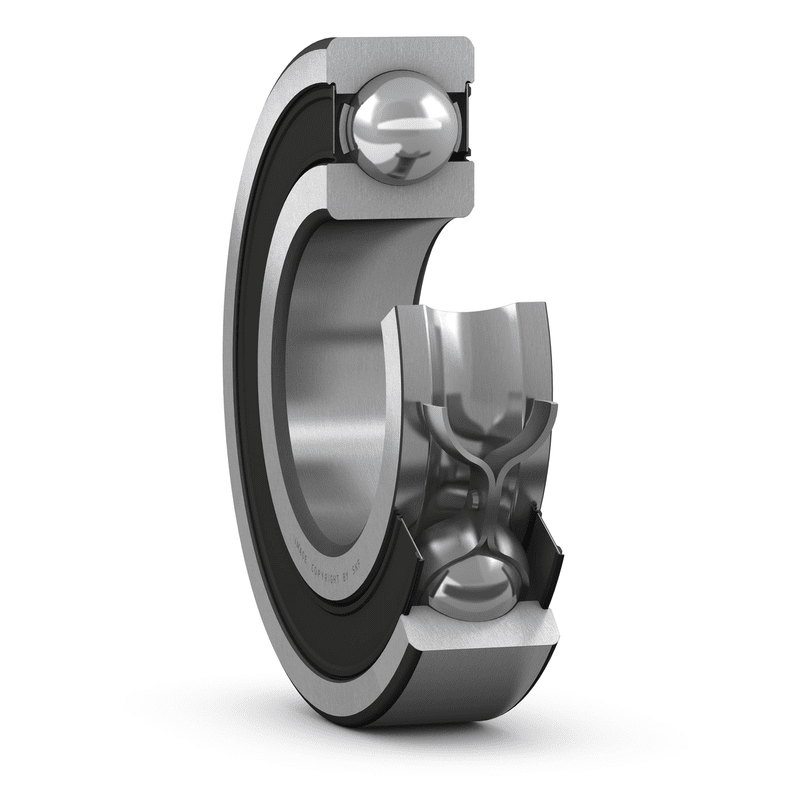

Deep groove ball bearings 61802-2RS1
SKU:BEA001819
Deep groove ball bearings 61802-2RS1
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
15 mm
|
|
|---|---|---|
| D |
24 mm
|
|
| B |
5 mm
|
|
| d1 |
≈ 17.8 mm
|
|
| D2 |
≈ 22.15 mm
|
|
| r1,2 |
min. 0.3 mm
|
ABUTMENT DIMENSIONS
| da |
min. 17 mm
|
|
|---|---|---|
| da |
max. 17.8 mm
|
|
| Da |
max. 22 mm
|
|
| ra |
max. 0.3 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
1.9 kN
|
|---|---|---|
| Basic static load rating | C0 |
1.1 kN
|
| Fatigue load limit | Pu |
0.048 kN
|
| Limiting speed |
17 000 r/min
|
|
| Calculation factor | kr |
0.015
|
| Calculation factor | f0 |
13.8
|
MASS
| Mass bearing |
0.007 kg
|
|---|
