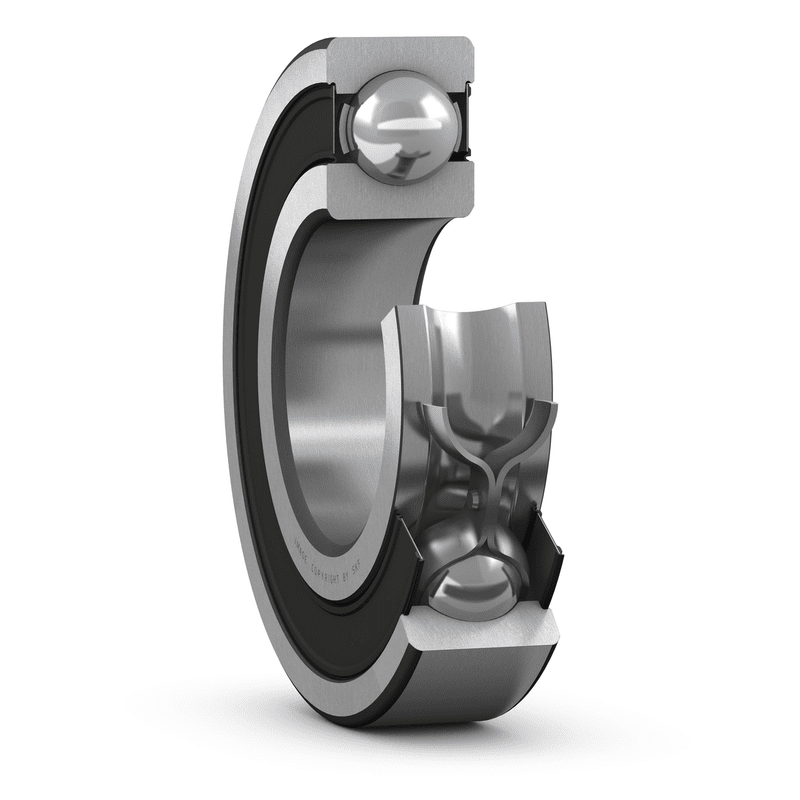

Deep groove ball bearings 61804-2RS1
SKU:BEA001271
Deep groove ball bearings 61804-2RS1
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
20 mm
|
|
|---|---|---|
| D |
32 mm
|
|
| B |
7 mm
|
|
| d1 |
≈ 23.85 mm
|
|
| D2 |
≈ 29.4 mm
|
|
| r1,2 |
min. 0.6 mm
|
ABUTMENT DIMENSIONS
| da |
min. 22 mm
|
|
|---|---|---|
| da |
max. 23.6 mm
|
|
| Da |
max. 30 mm
|
|
| ra |
max. 0.3 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
4.03 kN
|
|---|---|---|
| Basic static load rating | C0 |
2.32 kN
|
| Fatigue load limit | Pu |
0.104 kN
|
| Limiting speed |
13 000 r/min
|
|
| Calculation factor | kr |
0.015
|
| Calculation factor | f0 |
14.5
|
MASS
| Mass bearing |
0.018 kg
|
|---|
