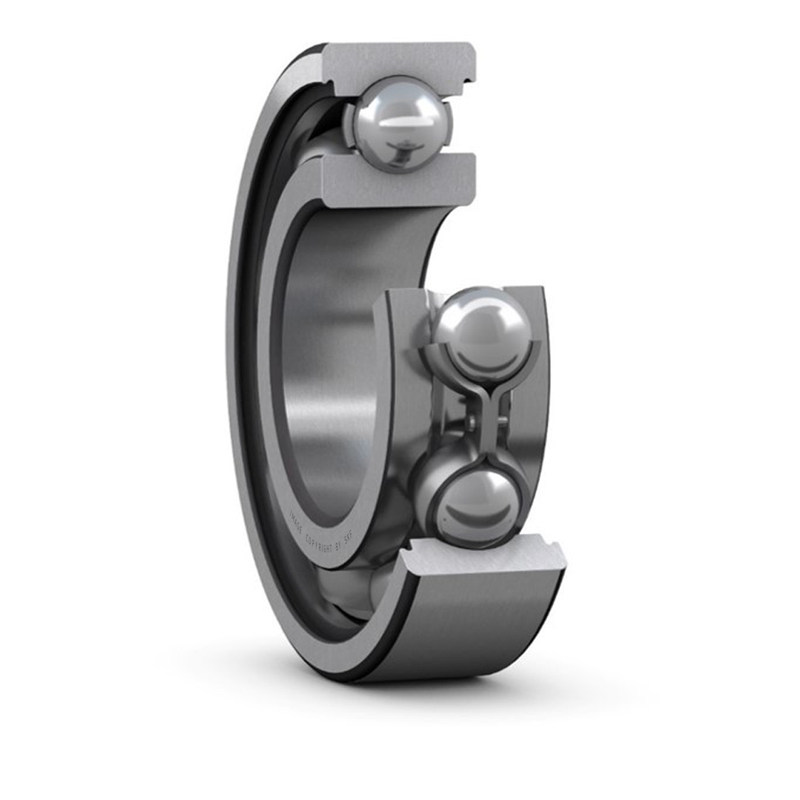

Manufacturer : SKF
Description
DIMENSIONS
| d |
100 mm
|
|
|---|---|---|
| D |
150 mm
|
|
| B |
24 mm
|
|
| d1 |
≈ 115.95 mm
|
|
| D2 |
≈ 138.3 mm
|
|
| r1,2 |
min. 1.5 mm
|
ABUTMENT DIMENSIONS
| da |
min. 107 mm
|
|
|---|---|---|
| Da |
max. 143 mm
|
|
| ra |
max. 1.5 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
63.7 kN
|
|---|---|---|
| Basic static load rating | C0 |
54 kN
|
| Fatigue load limit | Pu |
2.04 kN
|
| Reference speed |
9 500 r/min
|
|
| Limiting speed |
5 600 r/min
|
|
| Calculation factor | kr |
0.025
|
| Calculation factor | f0 |
15.9
|
