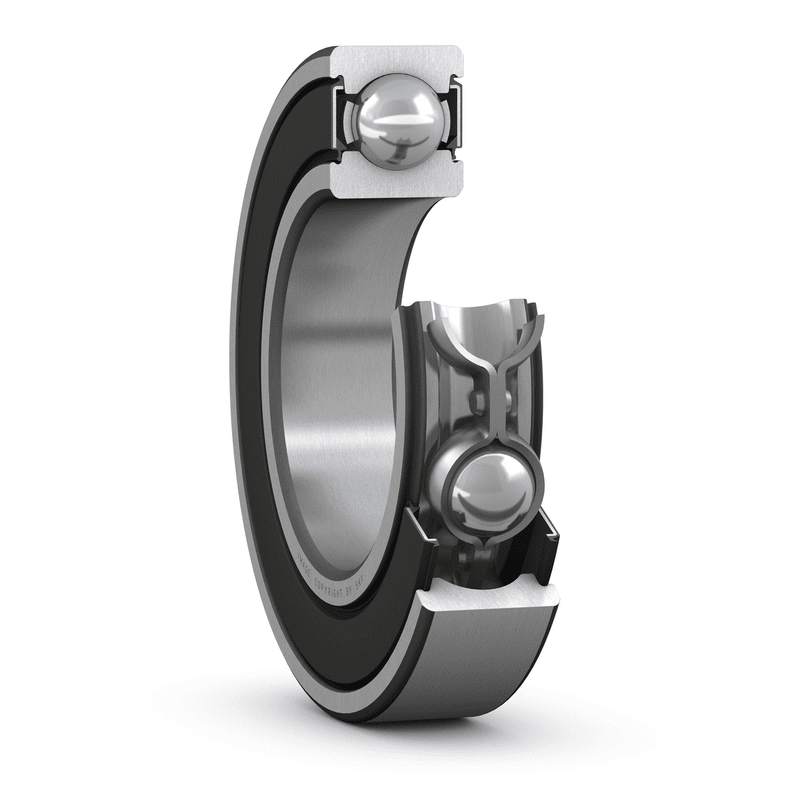

Deep groove ball bearings 6202-2RSH/C3
SKU:BEA000722
Deep groove ball bearings 6202-2RSH/C3
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
15 mm
|
|
|---|---|---|
| D |
35 mm
|
|
| B |
11 mm
|
|
| d2 |
≈ 18.6 mm
|
|
| D2 |
≈ 30.5 mm
|
|
| r1,2 |
min. 0.6 mm
|
ABUTMENT DIMENSIONS
| da |
min. 19.2 mm
|
|
|---|---|---|
| da |
max. 19.4 mm
|
|
| Da |
max. 30.8 mm
|
|
| ra |
max. 0.6 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
8.06 kN
|
|---|---|---|
| Basic static load rating | C0 |
3.75 kN
|
| Fatigue load limit | Pu |
0.16 kN
|
| Limiting speed |
13 000 r/min
|
|
| Calculation factor | kr |
0.025
|
| Calculation factor | f0 |
13.1
|
MASS
| Mass bearing |
0.046 kg
|
|---|
