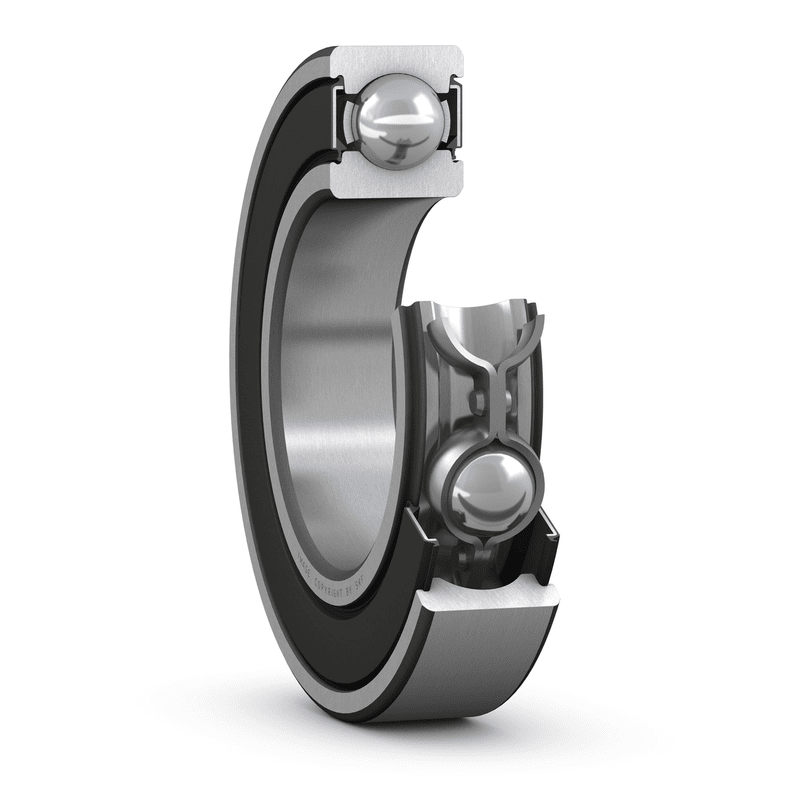

Deep groove ball bearings 6203-2RSHNR
SKU:BEA001337
Deep groove ball bearings 6203-2RSHNR
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
17 mm
|
|
|---|---|---|
| D |
40 mm
|
|
| B |
12 mm
|
|
| d2 |
≈ 21.75 mm
|
|
| D2 |
≈ 34.98 mm
|
|
| r1,2 |
min. 0.6 mm
|
ABUTMENT DIMENSIONS
| da |
min. 21.2 mm
|
|
|---|---|---|
| da |
max. 22 mm
|
|
| Da |
max. 35.8 mm
|
|
| ra |
max. 0.6 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
9.95 kN
|
|---|---|---|
| Basic static load rating | C0 |
4.75 kN
|
| Fatigue load limit | Pu |
0.2 kN
|
| Limiting speed |
12 000 r/min
|
|
| Calculation factor | kr |
0.025
|
| Calculation factor | f0 |
13.1
|
MASS
| Mass bearing |
0.067 kg
|
|---|
