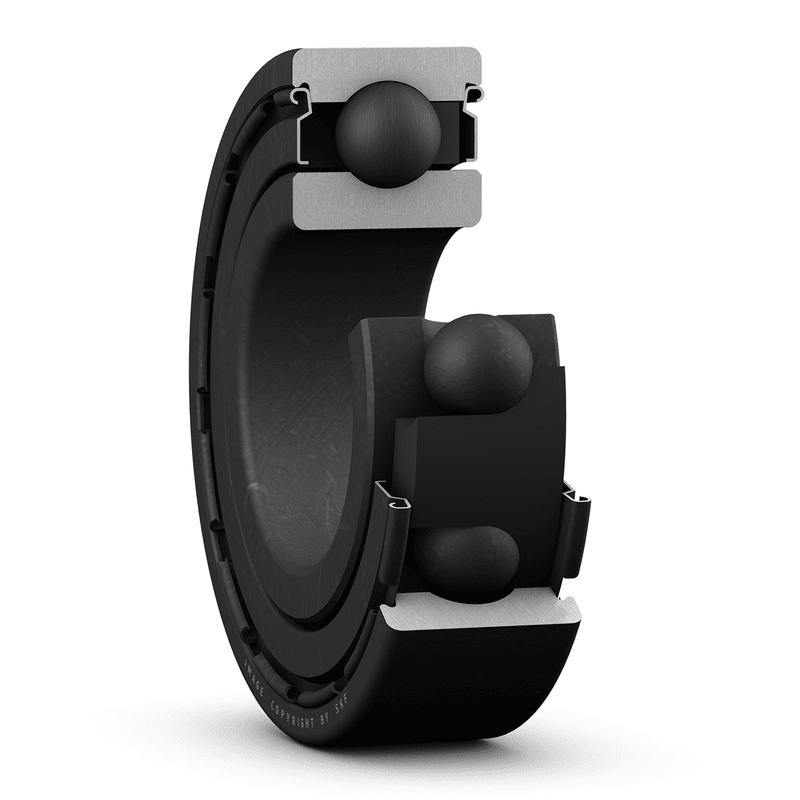

Deep groove ball bearings, single row, for high temperature applications 6203-2Z/VA228
SKU:BEA001298
Deep groove ball bearings, single row, for high temperature applications 6203-2Z/VA228
Manufacturer : SKF
Description
Technical specification
| Running in required |
No
|
|---|
DIMENSIONS
| d |
17 mm
|
|
|---|---|---|
| D |
40 mm
|
|
| B |
12 mm
|
|
| d1 |
≈ 24.5 mm
|
|
| D2 |
≈ 34.98 mm
|
|
| r1,2 |
min. 0.6 mm
|
ABUTMENT DIMENSIONS
| da |
min. 21.2 mm
|
|
|---|---|---|
| da |
max. 24.4 mm
|
|
| Da |
max. 35.8 mm
|
|
| ra |
max. 0.6 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
9.95 kN
|
|---|---|---|
| Basic static load rating | C0 |
4.75 kN
|
| Limiting speed |
310 r/min
|
|
| Limiting temperature | T |
max. 350 °C
|
MASS
| Mass bearing |
0.068 kg
|
|---|
