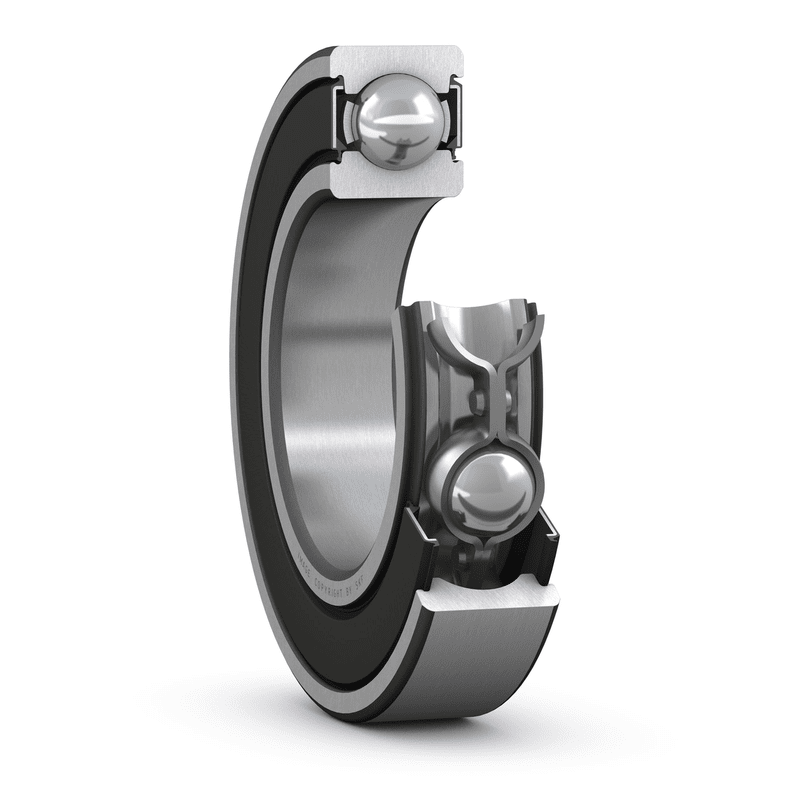

Deep groove ball bearings 6205-2RSHNR
SKU:BEA001336
Deep groove ball bearings 6205-2RSHNR
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
25 mm
|
|
|---|---|---|
| D |
52 mm
|
|
| B |
15 mm
|
|
| d2 |
≈ 31.3 mm
|
|
| D2 |
≈ 46.21 mm
|
|
| r1,2 |
min. 1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 30.6 mm
|
|
|---|---|---|
| da |
max. 31.5 mm
|
|
| Da |
max. 46.4 mm
|
|
| ra |
max. 1 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
14.8 kN
|
|---|---|---|
| Basic static load rating | C0 |
7.8 kN
|
| Fatigue load limit | Pu |
0.335 kN
|
| Limiting speed |
8 500 r/min
|
|
| Calculation factor | kr |
0.025
|
| Calculation factor | f0 |
13.9
|
MASS
| Mass bearing |
0.13 kg
|
|---|
