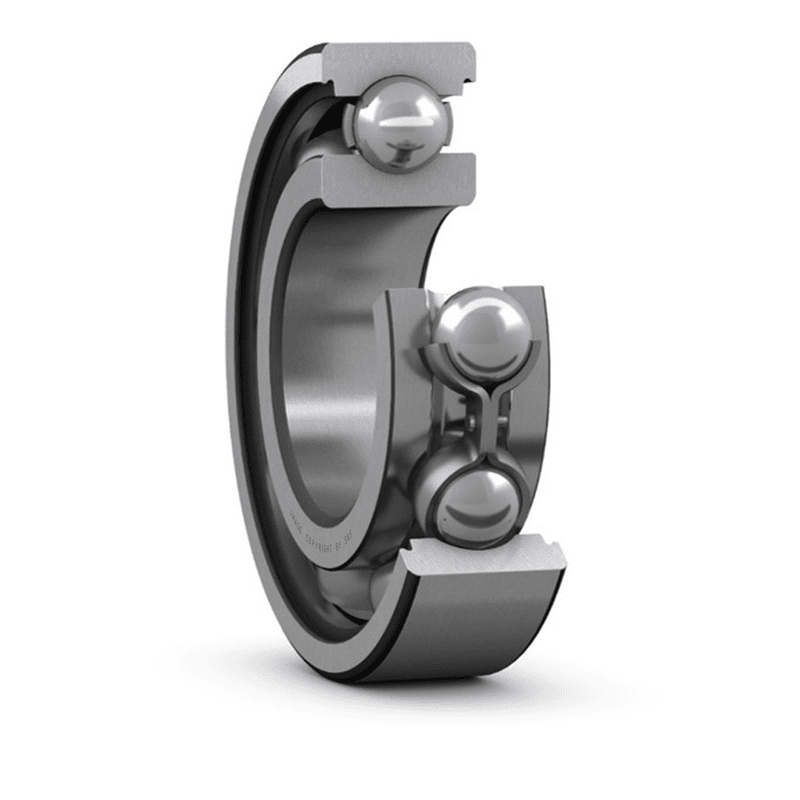

Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
65 mm
|
|
|---|---|---|
| D |
120 mm
|
|
| B |
23 mm
|
|
| d1 |
≈ 83.3 mm
|
|
| D2 |
≈ 105.8 mm
|
|
| D3 |
115.21 mm
|
|
| D4 |
129.7 mm
|
|
| b |
3.1 mm
|
|
| C |
4.06 mm
|
|
| f |
2.82 mm
|
|
| r0 |
max. 0.6 mm
|
|
| r1,2 |
min. 1.5 mm
|
ABUTMENT DIMENSIONS
| da |
min. 74 mm
|
|
|---|---|---|
| Da |
max. 111 mm
|
|
| Db |
min. 131 mm
|
|
| ba |
min. 3.5 mm
|
|
| Ca |
max. 6.88 mm
|
|
| ra |
max. 1.5 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
58.5 kN
|
|---|---|---|
| Basic static load rating | C0 |
40.5 kN
|
| Fatigue load limit | Pu |
1.73 kN
|
| Reference speed |
12 000 r/min
|
|
| Limiting speed |
7 500 r/min
|
|
| Calculation factor | kr |
0.025
|
| Calculation factor | f0 |
15
|
MASS
| Mass bearing |
1.06 kg
|
|---|
