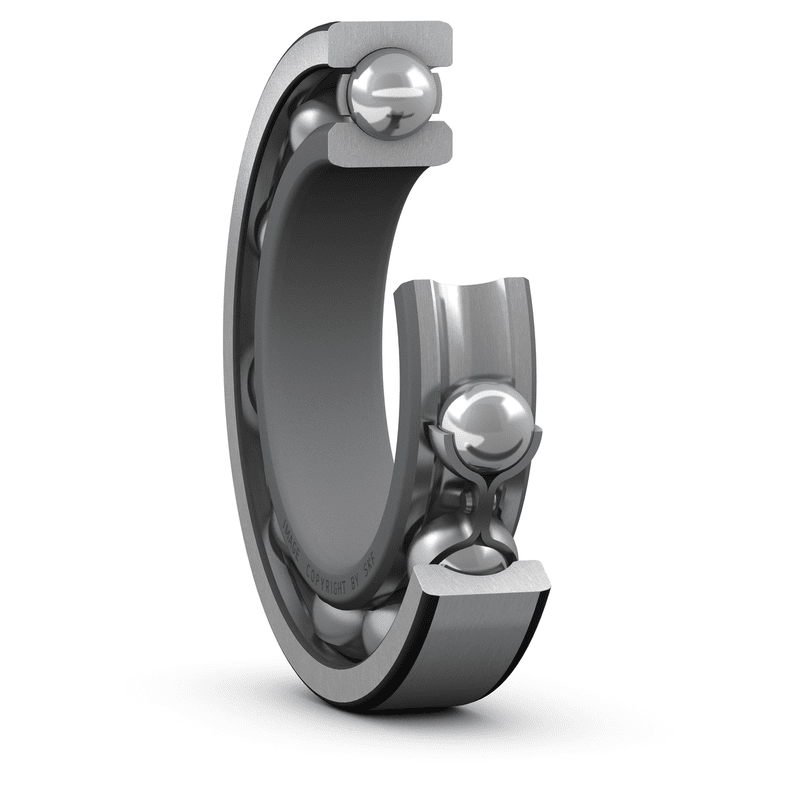

INSOCOAT deep groove ball bearings, single row 6330/C3VL2071
SKU:INS000004
INSOCOAT deep groove ball bearings, single row 6330/C3VL2071
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
150 mm
|
|
|---|---|---|
| D |
320 mm
|
|
| B |
65 mm
|
|
| d1 |
≈ 205.6 mm
|
|
| D1 |
≈ 263.4 mm
|
|
| r1,2 |
min. 4 mm
|
ABUTMENT DIMENSIONS
| da |
min. 167 mm
|
|
|---|---|---|
| da |
max. 200 mm
|
|
| Da |
max. 303 mm
|
|
| ra |
max. 3 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
286 kN
|
|---|---|---|
| Basic static load rating | C0 |
285 kN
|
| Fatigue load limit | Pu |
7.8 kN
|
| Reference speed |
4 300 r/min
|
|
| Limiting speed |
2 800 r/min
|
|
| Calculation factor | kr |
0.03
|
| Calculation factor | f0 |
13.9
|
MASS
| Mass bearing |
23 kg
|
|---|
