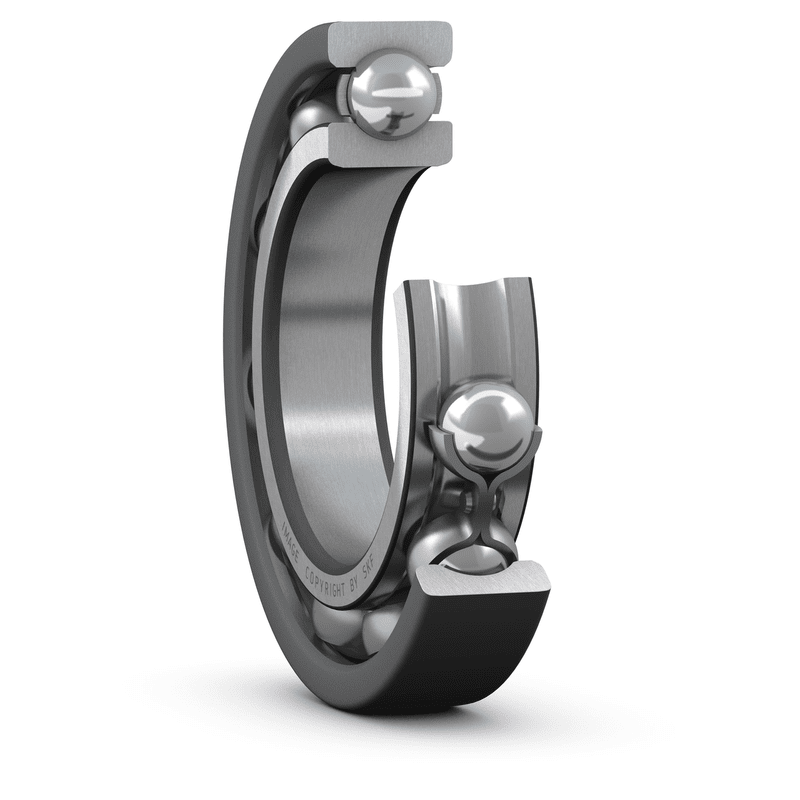

INSOCOAT deep groove ball bearings, single row 6218/C3VL0241
SKU:BEA001674
INSOCOAT deep groove ball bearings, single row 6218/C3VL0241
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
90 mm
|
|
|---|---|---|
| D |
160 mm
|
|
| B |
30 mm
|
|
| d1 |
≈ 112.5 mm
|
|
| D2 |
≈ 145 mm
|
|
| r1,2 |
min. 2 mm
|
ABUTMENT DIMENSIONS
| da |
min. 101 mm
|
|
|---|---|---|
| Da |
min. 149 mm
|
|
| Da |
max. 149 mm
|
|
| ra |
max. 2 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
101 kN
|
|---|---|---|
| Basic static load rating | C0 |
73.5 kN
|
| Fatigue load limit | Pu |
2.8 kN
|
| Reference speed |
8 500 r/min
|
|
| Limiting speed |
5 300 r/min
|
|
| Calculation factor | kr |
0.025
|
| Calculation factor | f0 |
14.7
|
MASS
| Mass bearing |
2.4 kg
|
|---|
