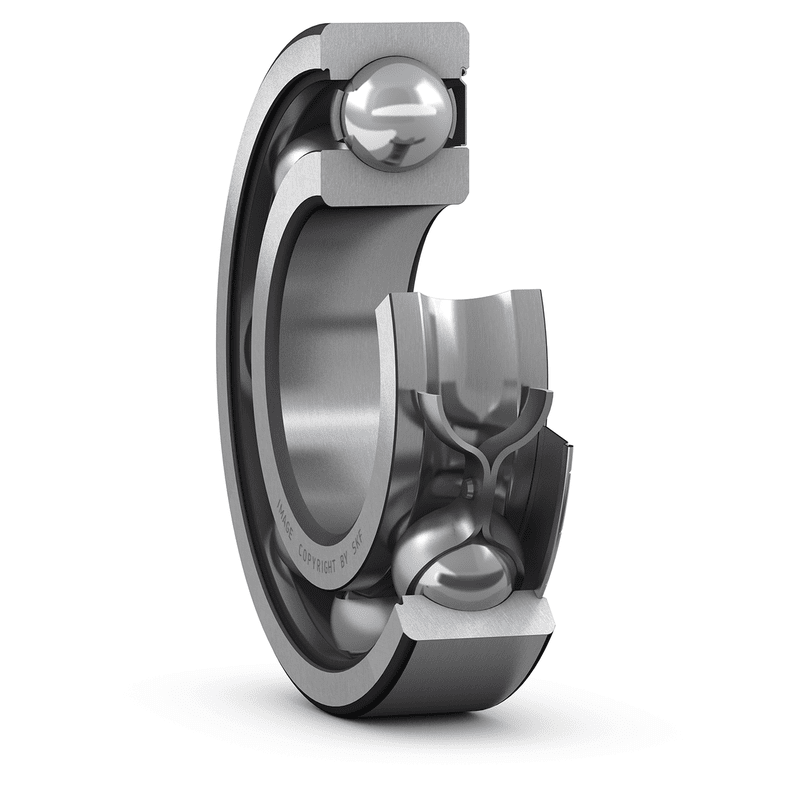

Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
95 mm
|
|
|---|---|---|
| D |
170 mm
|
|
| B |
32 mm
|
|
| d1 |
≈ 118.25 mm
|
|
| D2 |
≈ 151.3 mm
|
|
| r1,2 |
min. 2.1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 107 mm
|
|
|---|---|---|
| da |
max. 118 mm
|
|
| Da |
max. 158 mm
|
|
| ra |
max. 2 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
114 kN
|
|---|---|---|
| Basic static load rating | C0 |
81.5 kN
|
| Fatigue load limit | Pu |
3 kN
|
| Reference speed |
8 000 r/min
|
|
| Limiting speed |
5 000 r/min
|
|
| Calculation factor | kr |
0.025
|
| Calculation factor | f0 |
14.4
|
MASS
| Mass bearing |
2.66 kg
|
|---|
