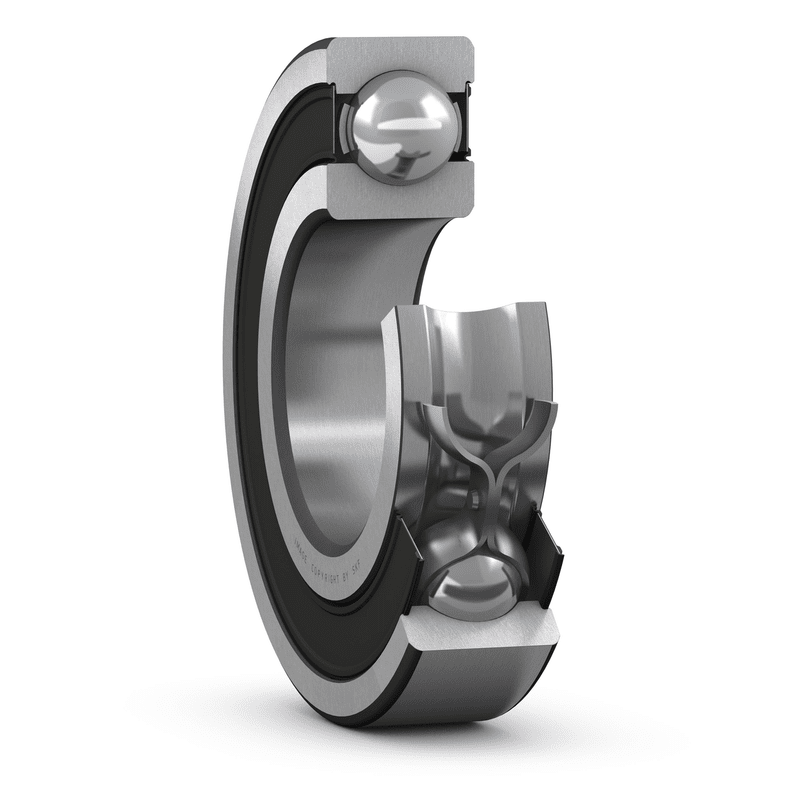

Deep groove ball bearings 62200-2RS1
SKU:BEA001546
Deep groove ball bearings 62200-2RS1
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
10 mm
|
|
|---|---|---|
| D |
30 mm
|
|
| B |
14 mm
|
|
| d1 |
≈ 17 mm
|
|
| D2 |
≈ 24.72 mm
|
|
| r1,2 |
min. 0.6 mm
|
ABUTMENT DIMENSIONS
| da |
min. 14.2 mm
|
|
|---|---|---|
| da |
max. 16.9 mm
|
|
| Da |
max. 25.8 mm
|
|
| ra |
max. 0.6 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
5.07 kN
|
|---|---|---|
| Basic static load rating | C0 |
2.36 kN
|
| Fatigue load limit | Pu |
0.1 kN
|
| Limiting speed |
17 000 r/min
|
|
| Calculation factor | kr |
0.025
|
| Calculation factor | f0 |
13
|
MASS
| Mass bearing |
0.04 kg
|
|---|
