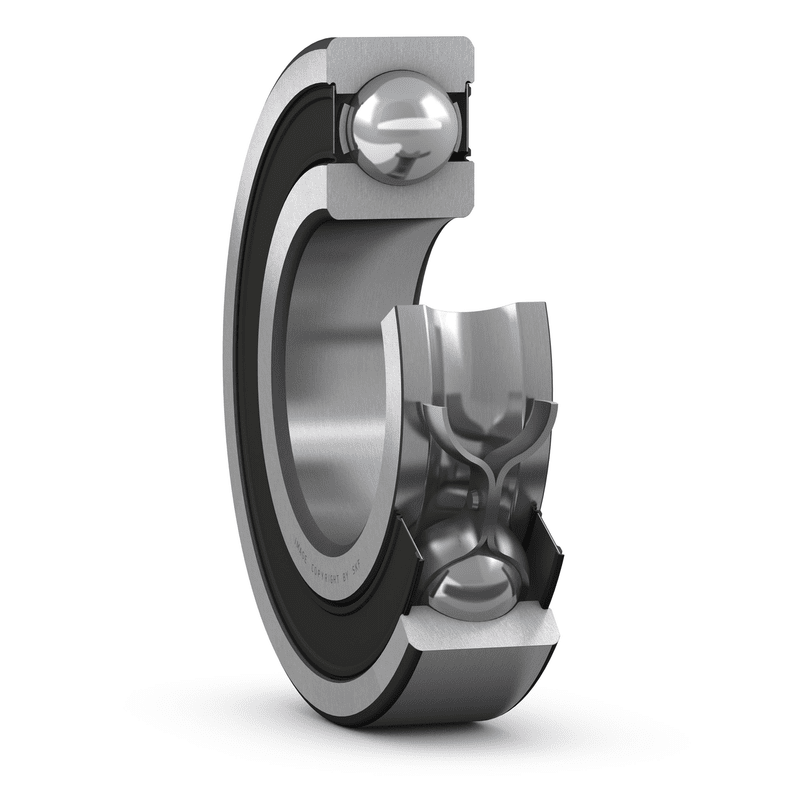

Deep groove ball bearings 62201-2RS1
SKU:BEA001520
Deep groove ball bearings 62201-2RS1
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
12 mm
|
|
|---|---|---|
| D |
32 mm
|
|
| B |
14 mm
|
|
| d1 |
≈ 18.5 mm
|
|
| D2 |
≈ 27.34 mm
|
|
| r1,2 |
min. 0.6 mm
|
ABUTMENT DIMENSIONS
| da |
min. 16.2 mm
|
|
|---|---|---|
| da |
max. 18.4 mm
|
|
| Da |
max. 27.8 mm
|
|
| ra |
max. 0.6 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
6.89 kN
|
|---|---|---|
| Basic static load rating | C0 |
3.1 kN
|
| Fatigue load limit | Pu |
0.132 kN
|
| Limiting speed |
15 000 r/min
|
|
| Calculation factor | kr |
0.025
|
| Calculation factor | f0 |
12
|
MASS
| Mass bearing |
0.045 kg
|
|---|
