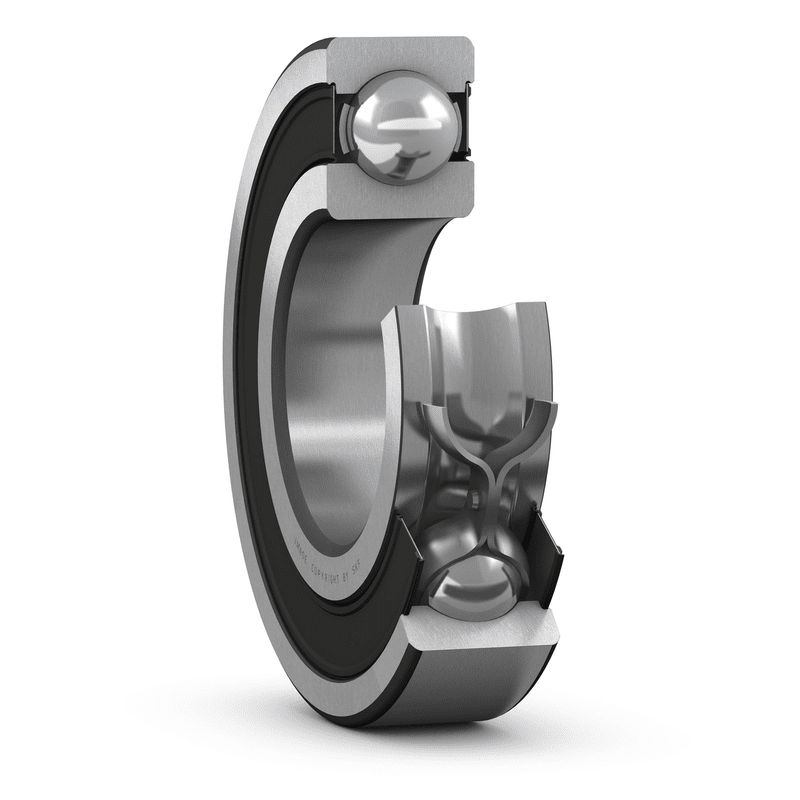

Deep groove ball bearings 62209-2RS1
SKU:BEA001338
Deep groove ball bearings 62209-2RS1
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
45 mm
|
|
|---|---|---|
| D |
85 mm
|
|
| B |
23 mm
|
|
| d1 |
≈ 57.6 mm
|
|
| D2 |
≈ 75.19 mm
|
|
| r1,2 |
min. 1.1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 52 mm
|
|
|---|---|---|
| da |
max. 57.5 mm
|
|
| Da |
max. 78 mm
|
|
| ra |
max. 1 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
33.2 kN
|
|---|---|---|
| Basic static load rating | C0 |
21.6 kN
|
| Fatigue load limit | Pu |
0.915 kN
|
| Limiting speed |
5 000 r/min
|
|
| Calculation factor | kr |
0.025
|
| Calculation factor | f0 |
14.2
|
MASS
| Mass bearing |
0.51 kg
|
|---|
