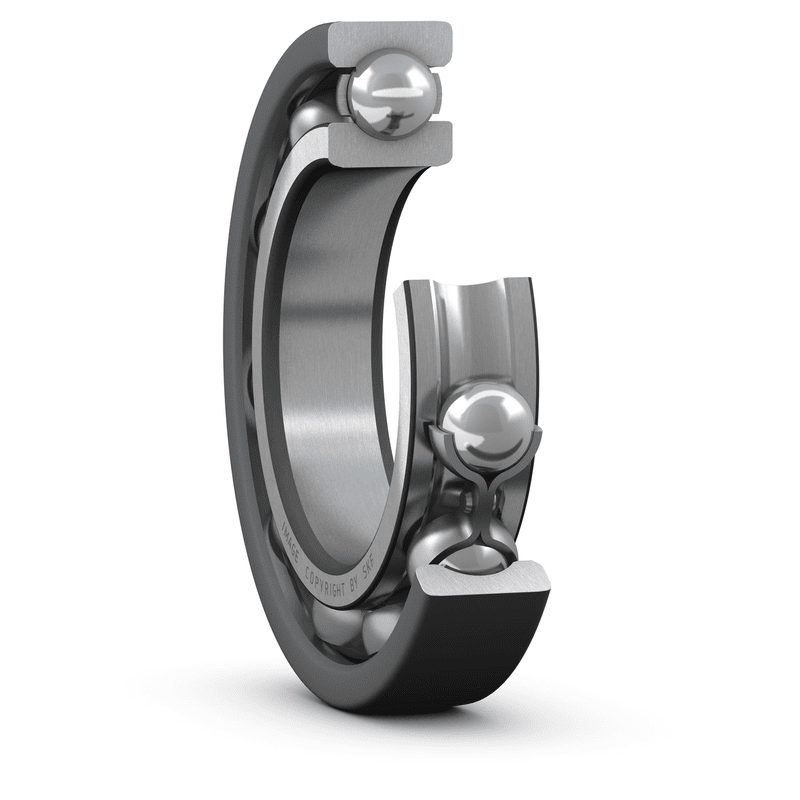

Deep groove ball bearings 6316/C3VL0241
SKU:DGB000007
Deep groove ball bearings 6316/C3VL0241
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
80 mm
|
|
|---|---|---|
| D |
170 mm
|
|
| B |
39 mm
|
|
| d1 |
≈ 108 mm
|
|
| D2 |
≈ 149 mm
|
|
| r1,2 |
min. 2.1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 92 mm
|
|
|---|---|---|
| Da |
min. 154 mm
|
|
| Da |
max. 158 mm
|
|
| ra |
max. 2 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
130 kN
|
|---|---|---|
| Basic static load rating | C0 |
86.5 kN
|
| Fatigue load limit | Pu |
3.25 kN
|
| Reference speed |
8 500 r/min
|
|
| Limiting speed |
5 300 r/min
|
|
| Calculation factor | kr |
0.03
|
| Calculation factor | f0 |
13.3
|
MASS
| Mass bearing |
3.55 kg
|
|---|
