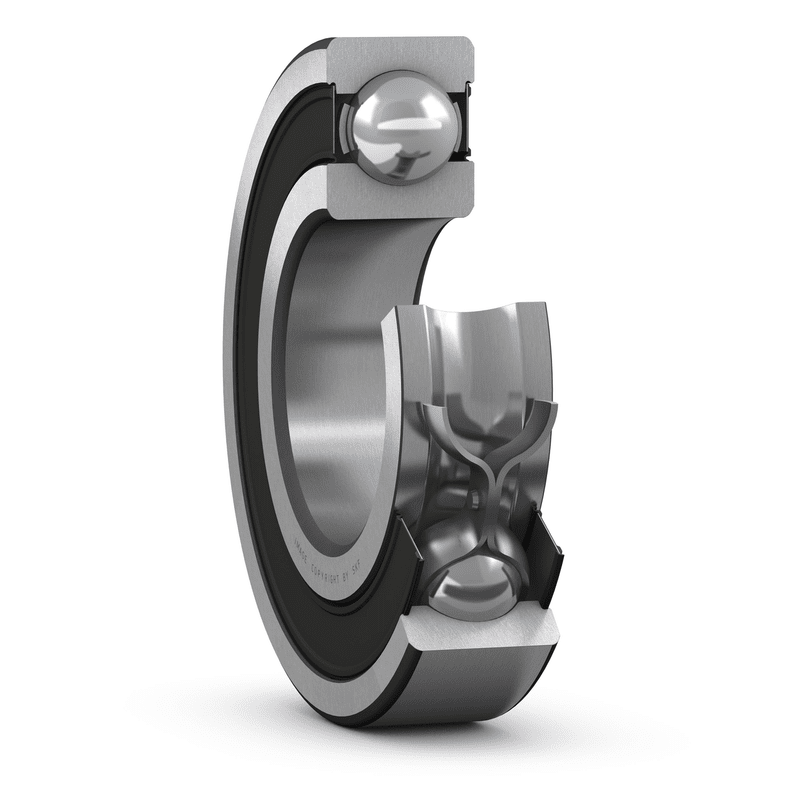

Deep groove ball bearings 62212-2RS1
SKU:BEA000657
Deep groove ball bearings 62212-2RS1
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
60 mm
|
|
|---|---|---|
| D |
110 mm
|
|
| B |
28 mm
|
|
| d1 |
≈ 75.5 mm
|
|
| D2 |
≈ 98 mm
|
|
| r1,2 |
min. 1.5 mm
|
ABUTMENT DIMENSIONS
| da |
min. 69 mm
|
|
|---|---|---|
| da |
max. 75.4 mm
|
|
| Da |
max. 101 mm
|
|
| ra |
max. 1.5 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
52.7 kN
|
|---|---|---|
| Basic static load rating | C0 |
36 kN
|
| Fatigue load limit | Pu |
1.53 kN
|
| Limiting speed |
4 000 r/min
|
|
| Calculation factor | kr |
0.025
|
| Calculation factor | f0 |
14.3
|
MASS
| Mass bearing |
1.01 kg
|
|---|
