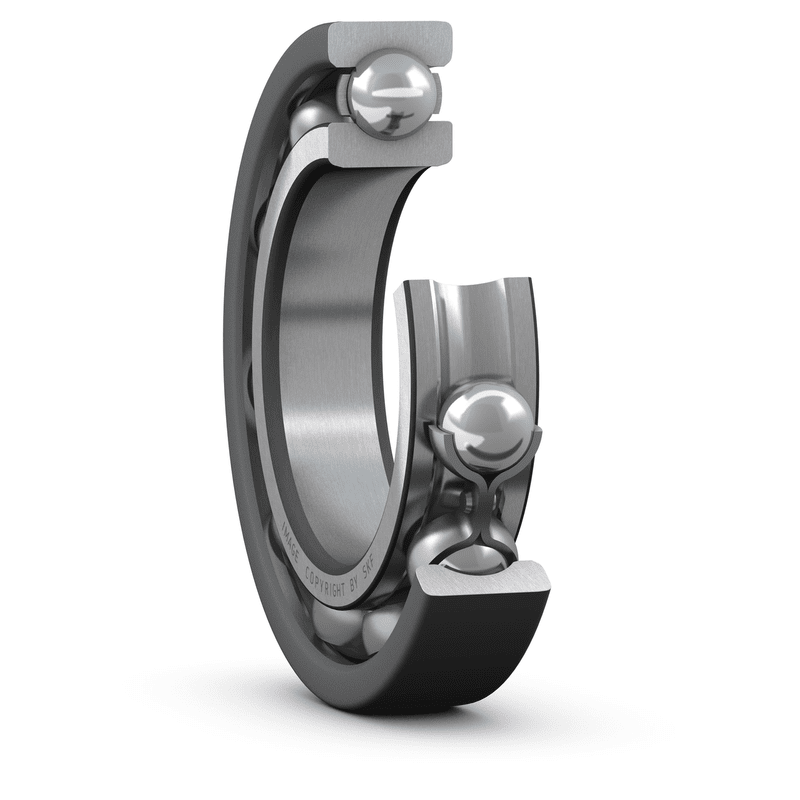

INSOCOAT deep groove ball bearings, single row 6224/C3VL0241
SKU:BEA001802
INSOCOAT deep groove ball bearings, single row 6224/C3VL0241
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
120 mm
|
|
|---|---|---|
| D |
215 mm
|
|
| B |
40 mm
|
|
| d1 |
≈ 150.6 mm
|
|
| r1,2 |
min. 2.1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 132 mm
|
|
|---|---|---|
| Da |
min. 194 mm
|
|
| Da |
max. 203 mm
|
|
| ra |
max. 2 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
153 kN
|
|---|---|---|
| Basic static load rating | C0 |
118 kN
|
| Fatigue load limit | Pu |
3.9 kN
|
| Reference speed |
6 300 r/min
|
|
| Limiting speed |
4 000 r/min
|
|
| Calculation factor | kr |
0.025
|
| Calculation factor | f0 |
14.4
|
MASS
| Mass bearing |
5.2 kg
|
|---|
