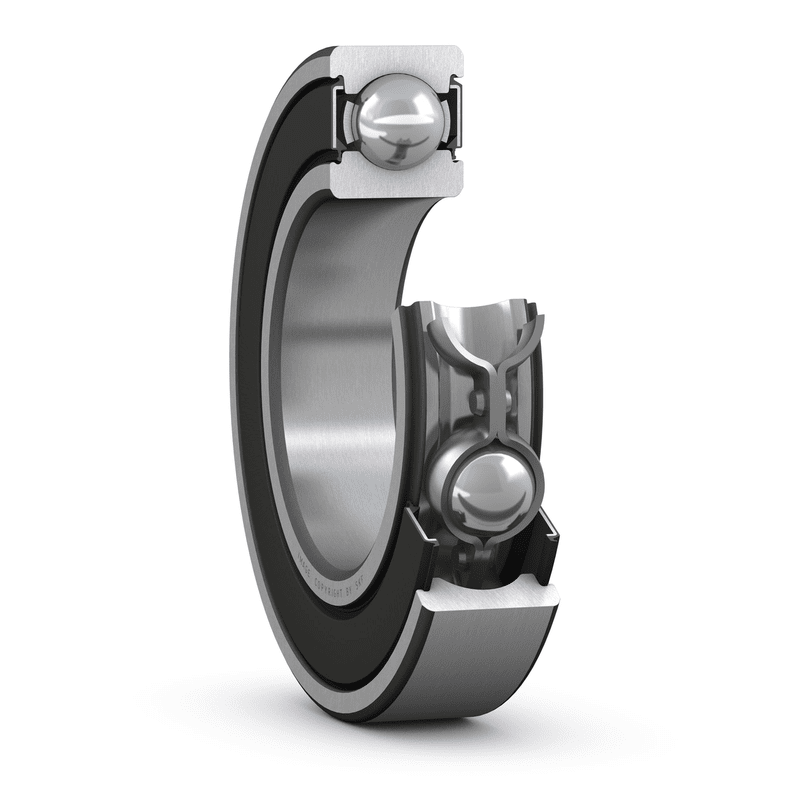

Deep groove ball bearings 6310-2RSH/C3
SKU:BEA000692
Deep groove ball bearings 6310-2RSH/C3
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
50 mm
|
|
|---|---|---|
| D |
110 mm
|
|
| B |
27 mm
|
|
| d2 |
≈ 64.742 mm
|
|
| D2 |
≈ 95.9 mm
|
|
| r1,2 |
min. 2 mm
|
ABUTMENT DIMENSIONS
| da |
min. 61 mm
|
|
|---|---|---|
| da |
max. 64.4 mm
|
|
| Da |
max. 99 mm
|
|
| ra |
max. 2 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
65 kN
|
|---|---|---|
| Basic static load rating | C0 |
38 kN
|
| Fatigue load limit | Pu |
1.6 kN
|
| Limiting speed |
4 300 r/min
|
|
| Calculation factor | kr |
0.03
|
| Calculation factor | f0 |
13
|
MASS
| Mass bearing |
1.1 kg
|
|---|
