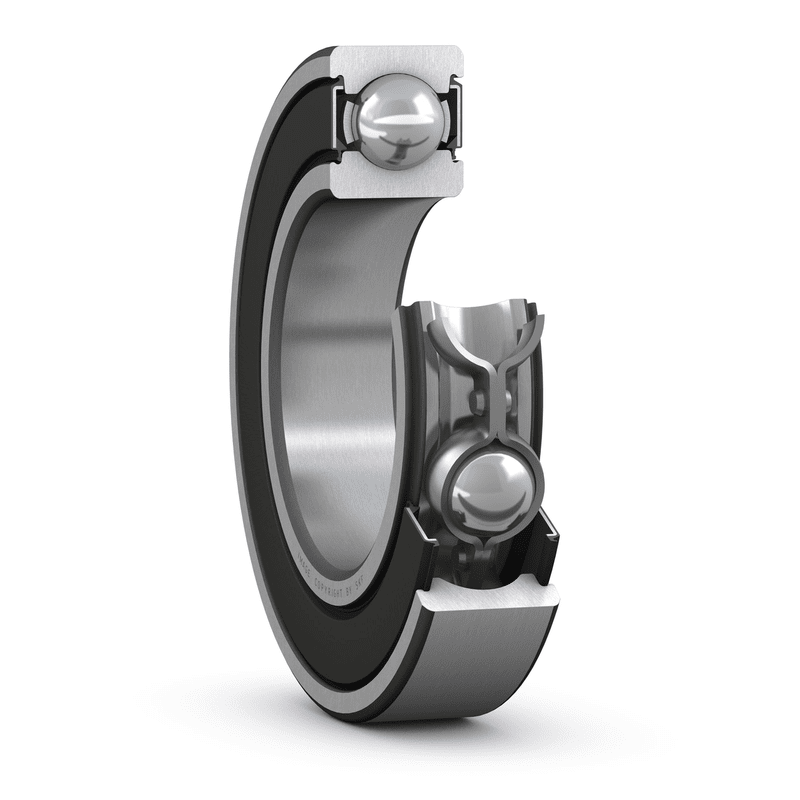

Deep groove ball bearings 6314-2RS1/C3
SKU:BEA001455
Deep groove ball bearings 6314-2RS1/C3
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
70 mm
|
|
|---|---|---|
| D |
150 mm
|
|
| B |
35 mm
|
|
| d1 |
≈ 94.95 mm
|
|
| D2 |
≈ 129.9 mm
|
|
| r1,2 |
min. 2.1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 82 mm
|
|
|---|---|---|
| da |
max. 94.9 mm
|
|
| Da |
max. 138 mm
|
|
| ra |
max. 2 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
111 kN
|
|---|---|---|
| Basic static load rating | C0 |
68 kN
|
| Fatigue load limit | Pu |
2.75 kN
|
| Limiting speed |
3 000 r/min
|
|
| Calculation factor | kr |
0.03
|
| Calculation factor | f0 |
13.2
|
MASS
| Mass bearing |
2.62 kg
|
|---|
