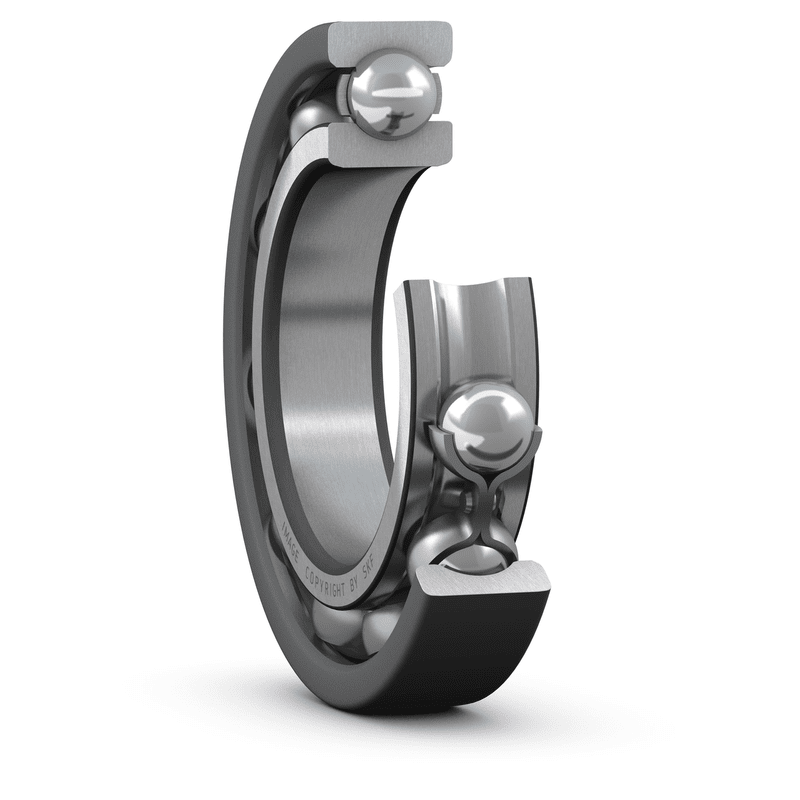

Deep groove ball bearings 6320/C3VL0241
SKU:DGB000008
Deep groove ball bearings 6320/C3VL0241
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
100 mm
|
|
|---|---|---|
| D |
215 mm
|
|
| B |
47 mm
|
|
| d1 |
≈ 135.85 mm
|
|
| D2 |
≈ 186 mm
|
|
| r1,2 |
min. 3 mm
|
ABUTMENT DIMENSIONS
| da |
min. 114 mm
|
|
|---|---|---|
| Da |
min. 191 mm
|
|
| Da |
max. 201 mm
|
|
| ra |
max. 2.5 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
182 kN
|
|---|---|---|
| Basic static load rating | C0 |
140 kN
|
| Fatigue load limit | Pu |
4.75 kN
|
| Reference speed |
6 700 r/min
|
|
| Limiting speed |
4 300 r/min
|
|
| Calculation factor | kr |
0.03
|
| Calculation factor | f0 |
13.2
|
MASS
| Mass bearing |
7 kg
|
|---|
