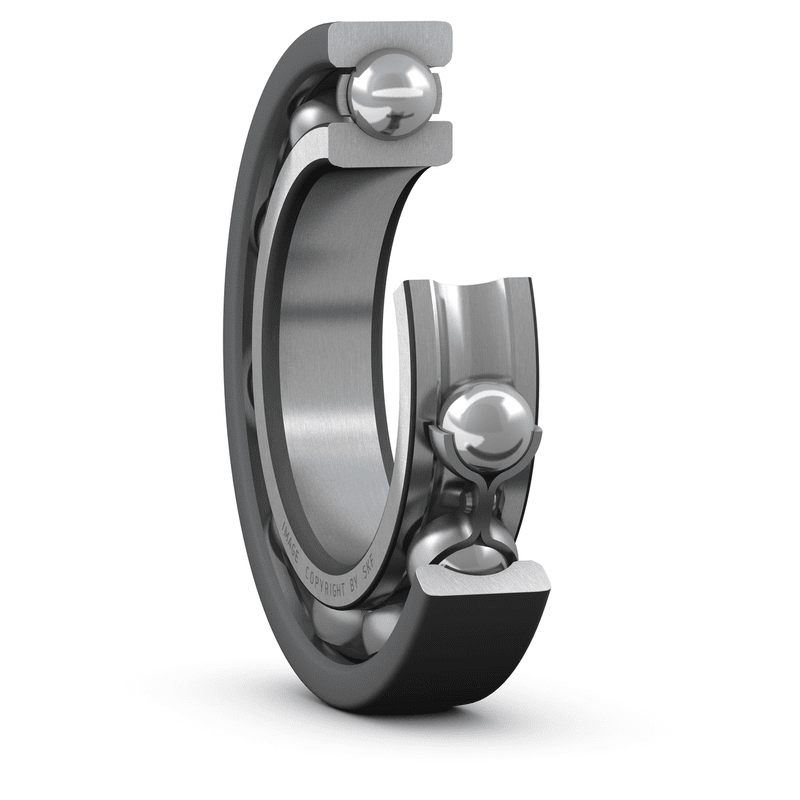

INSOCOAT deep groove ball bearings, single row 6313 M/C3VL0241
SKU:BEA001803
INSOCOAT deep groove ball bearings, single row 6313 M/C3VL0241
Manufacturer : SKF
Description
echnical specification
DIMENSIONS
| d |
65 mm
|
|
|---|---|---|
| D |
140 mm
|
|
| B |
33 mm
|
|
| d1 |
≈ 88.35 mm
|
|
| D2 |
≈ 121.3 mm
|
|
| r1,2 |
min. 2.1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 77 mm
|
|
|---|---|---|
| Da |
max. 128 mm
|
|
| ra |
max. 2 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
97.5 kN
|
|---|---|---|
| Basic static load rating | C0 |
60 kN
|
| Fatigue load limit | Pu |
2.5 kN
|
| Reference speed |
10 000 r/min
|
|
| Limiting speed |
6 700 r/min
|
|
| Calculation factor | kr |
0.03
|
| Calculation factor | f0 |
13.2
|
MASS
| Mass bearing |
2.11 kg
|
|---|
