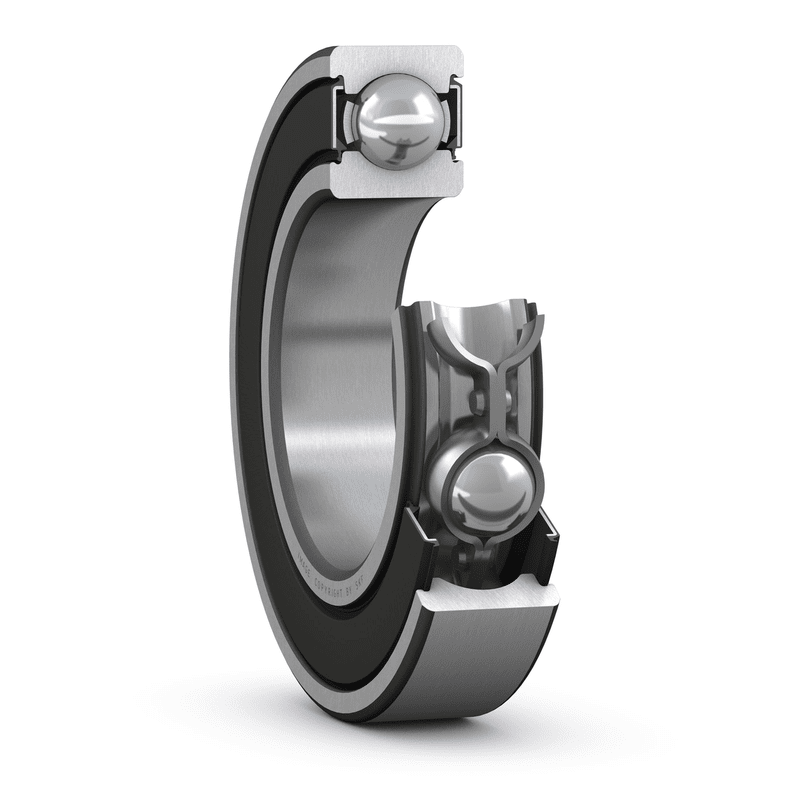

Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
6 mm
|
|
|---|---|---|
| D |
19 mm
|
|
| B |
6 mm
|
|
| d2 |
≈ 9.5 mm
|
|
| D2 |
≈ 16.5 mm
|
|
| r1,2 |
min. 0.3 mm
|
ABUTMENT DIMENSIONS
| da |
min. 8.4 mm
|
|
|---|---|---|
| da |
max. 9.4 mm
|
|
| Da |
max. 16.6 mm
|
|
| ra |
max. 0.3 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
2.34 kN
|
|---|---|---|
| Basic static load rating | C0 |
0.95 kN
|
| Fatigue load limit | Pu |
0.04 kN
|
| Limiting speed |
24 000 r/min
|
|
| Calculation factor | kr |
0.025
|
| Calculation factor | f0 |
13
|
MASS
| Mass bearing |
0.008 kg
|
|---|
