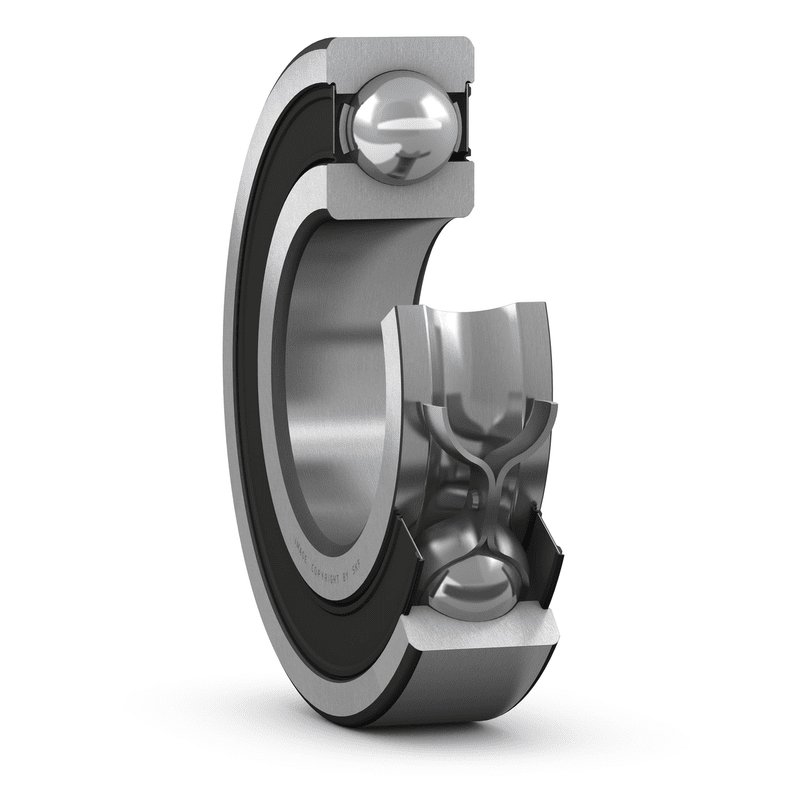

Deep groove ball bearings 628/8-2RS1
SKU:BEA001306
Deep groove ball bearings 628/8-2RS1
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
8 mm
|
|
|---|---|---|
| D |
16 mm
|
|
| B |
5 mm
|
|
| d1 |
≈ 10.1 mm
|
|
| D2 |
≈ 14.2 mm
|
|
| r1,2 |
min. 0.2 mm
|
ABUTMENT DIMENSIONS
| da |
min. 9.4 mm
|
|
|---|---|---|
| da |
max. 9.4 mm
|
|
| Da |
max. 14.6 mm
|
|
| ra |
max. 0.2 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
1.33 kN
|
|---|---|---|
| Basic static load rating | C0 |
0.57 kN
|
| Fatigue load limit | Pu |
0.024 kN
|
| Limiting speed |
26 000 r/min
|
|
| Calculation factor | kr |
0.015
|
| Calculation factor | f0 |
11
|
MASS
| Mass bearing |
0.004 kg
|
|---|
