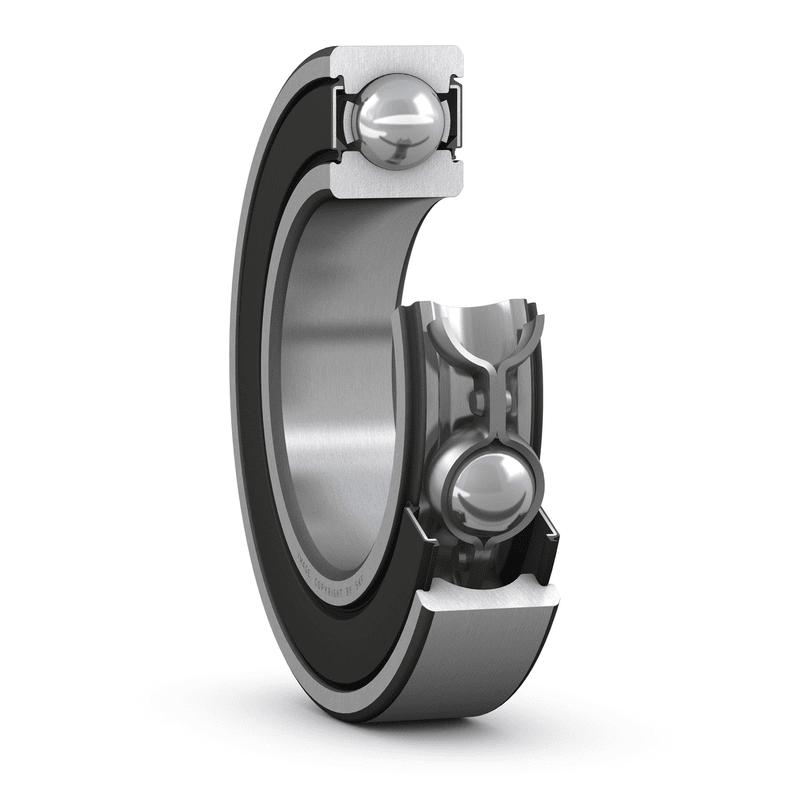

Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
12 mm
|
|
|---|---|---|
| D |
37 mm
|
|
| B |
12 mm
|
|
| d2 |
≈ 17.5 mm
|
|
| D2 |
≈ 31.48 mm
|
|
| r1,2 |
min. 1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 17.6 mm
|
|
|---|---|---|
| da |
max. 17.8 mm
|
|
| Da |
max. 31.4 mm
|
|
| ra |
max. 1 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
10.1 kN
|
|---|---|---|
| Basic static load rating | C0 |
4.15 kN
|
| Fatigue load limit | Pu |
0.176 kN
|
| Limiting speed |
14 000 r/min
|
|
| Calculation factor | kr |
0.03
|
| Calculation factor | f0 |
11
|
MASS
| Mass bearing |
0.062 kg
|
|---|
