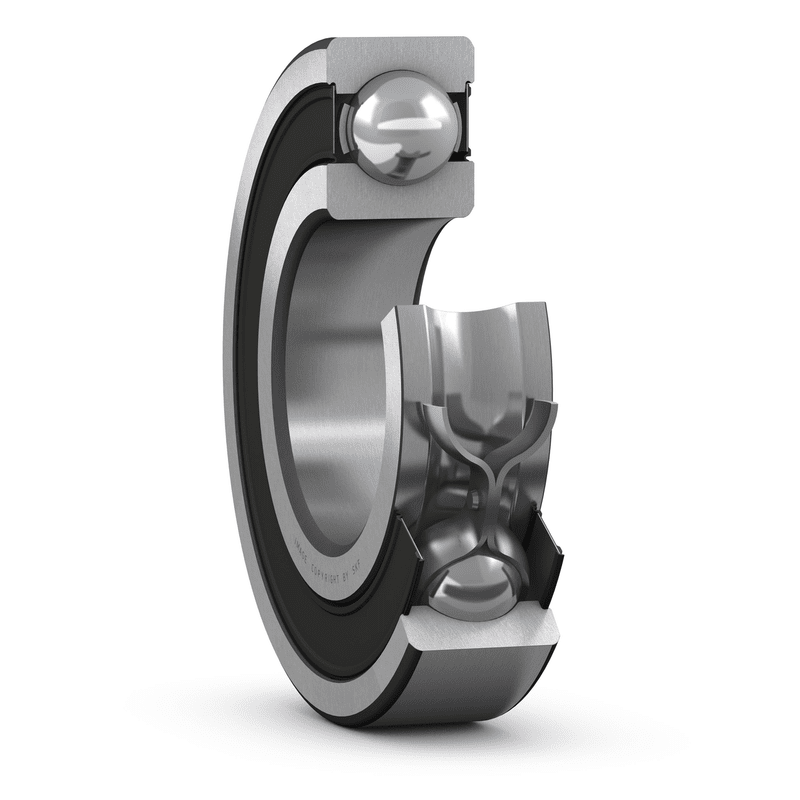

Deep groove ball bearings 63004-2RS1
SKU:BAL000163
Deep groove ball bearings 63004-2RS1
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
20 mm
|
|
|---|---|---|
| D |
42 mm
|
|
| B |
12 mm
|
|
| d1 |
≈ 27.6 mm
|
|
| d2 |
≈ 27.6 mm
|
|
| D2 |
≈ 38.75 mm
|
|
| r1,2 |
min. 0.6 mm
|
ABUTMENT DIMENSIONS
| da |
min. 24 mm
|
|
|---|---|---|
| da |
max. 27.5 mm
|
|
| Da |
max. 39.5 mm
|
|
| ra |
max. 0.6 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
8.06 kN
|
|---|---|---|
| Basic static load rating | C0 |
5 kN
|
| Fatigue load limit | Pu |
0.212 kN
|
| Limiting speed |
11 000 r/min
|
|
| Calculation factor | kr |
0.03
|
| Calculation factor | f0 |
13.9
|
MASS
| Mass bearing |
0.064 kg
|
|---|
