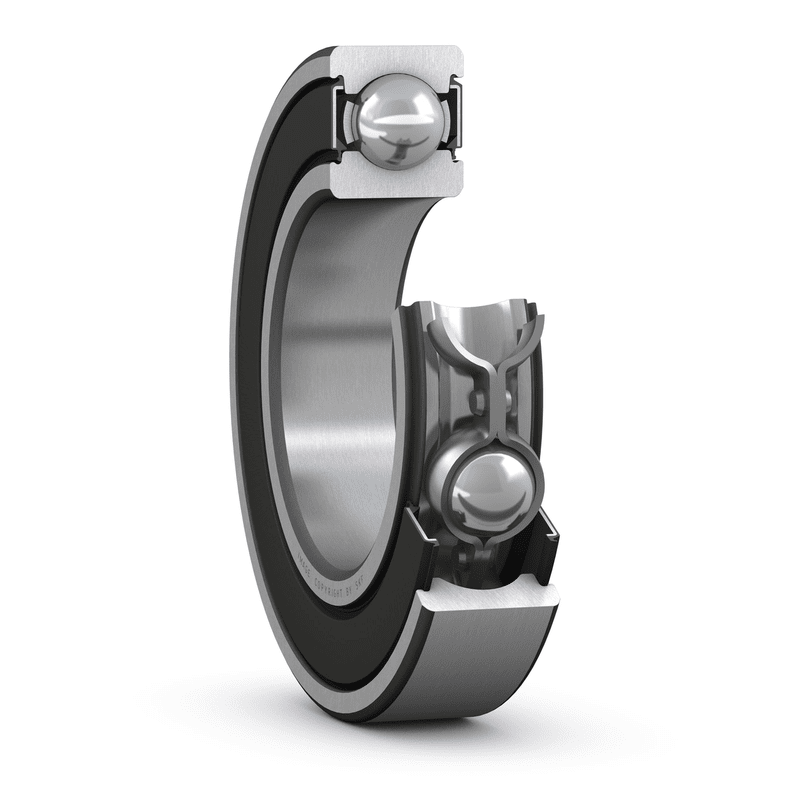

Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
15 mm
|
|
|---|---|---|
| D |
42 mm
|
|
| B |
13 mm
|
|
| d2 |
≈ 20.65 mm
|
|
| D2 |
≈ 36.23 mm
|
|
| r1,2 |
min. 1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 20.6 mm
|
|
|---|---|---|
| da |
max. 21 mm
|
|
| Da |
max. 36.4 mm
|
|
| ra |
max. 1 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
11.9 kN
|
|---|---|---|
| Basic static load rating | C0 |
5.4 kN
|
| Fatigue load limit | Pu |
0.228 kN
|
| Limiting speed |
12 000 r/min
|
|
| Calculation factor | kr |
0.03
|
| Calculation factor | f0 |
12
|
MASS
| Mass bearing |
0.085 kg
|
|---|
