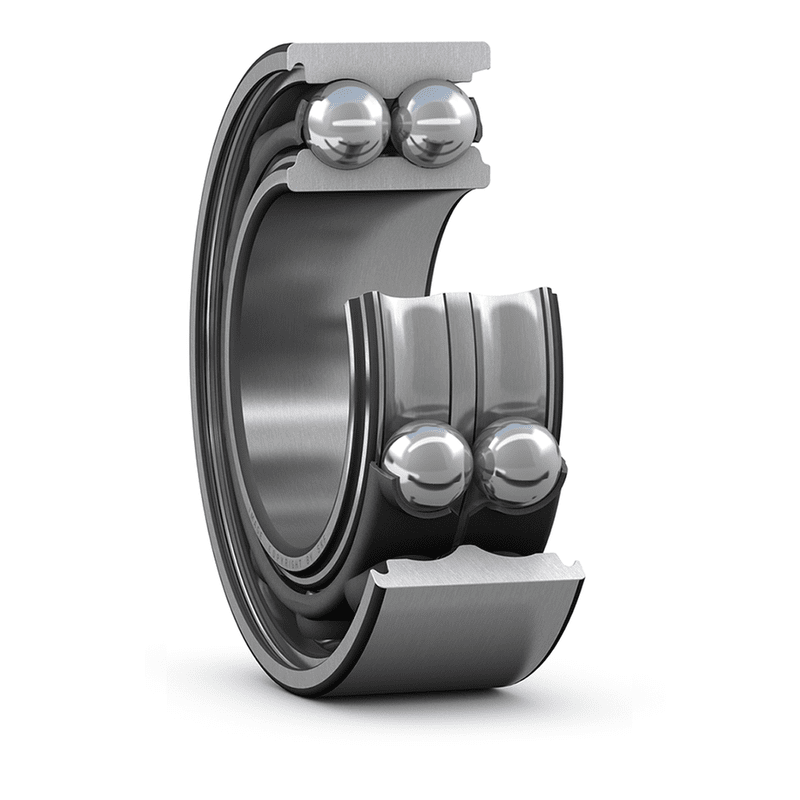

Angular contact ball bearings, double row 3313A
SKU:ACB000035
Angular contact ball bearings, double row 3313 A
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
65 mm
|
|
|---|---|---|
| D |
140 mm
|
|
| B |
58.7 mm
|
|
| d1 |
≈ 89.85 mm
|
|
| D1 |
≈ 115.95 mm
|
|
| r1,2 |
min. 2.1 mm
|
|
| a |
84 mm
|
ABUTMENT DIMENSIONS
| da |
min. 77 mm
|
|
|---|---|---|
| Da |
max. 128 mm
|
|
| ra |
max. 2 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
146 kN
|
|---|---|---|
| Basic static load rating | C0 |
110 kN
|
| Fatigue load limit | Pu |
4.55 kN
|
| Reference speed |
5 300 r/min
|
|
| Limiting speed |
4 500 r/min
|
|
| Calculation factor | kr |
0.07
|
| Calculation factor | e |
0.8
|
| Calculation factor | X |
0.63
|
| Calculation factor | Y0 |
0.66
|
| Calculation factor | Y1 |
0.78
|
| Calculation factor | Y2 |
1.24
|
MASS
| Mass bearing |
4.1 kg
|
|---|
