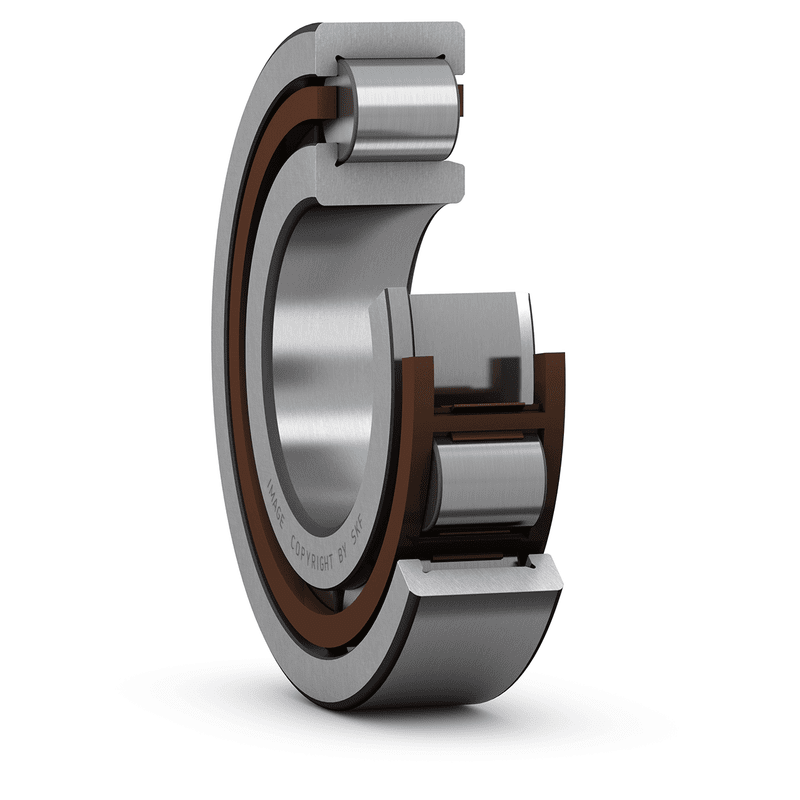

Cylindrical roller bearings, single row N216ECP
SKU:CYL000121
Cylindrical roller bearings, single row N216ECP
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
80 mm
|
|
|---|---|---|
| D |
140 mm
|
|
| B |
26 mm
|
|
| d1 |
≈ 101 mm
|
|
| E |
127.3 mm
|
|
| r1,2 |
min. 2 mm
|
|
| r3,4 |
min. 2 mm
|
|
| s |
max. 1.4 mm
|
ABUTMENT DIMENSIONS
| da |
min. 90 mm
|
|
|---|---|---|
| da |
max. 125 mm
|
|
| Da |
min. 130 mm
|
|
| Da |
max. 131 mm
|
|
| ra |
max. 2 mm
|
|
| rb |
max. 2 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
160 kN
|
|---|---|---|
| Basic static load rating | C0 |
166 kN
|
| Fatigue load limit | Pu |
21.2 kN
|
| Reference speed |
5 300 r/min
|
|
| Limiting speed |
5 600 r/min
|
|
| Calculation factor | kr |
0.12
|
| Limiting value | e |
0.2
|
| Axial load factor | Y |
0.6
|
MASS
| Mass bearing |
1.53 kg
|
|---|
