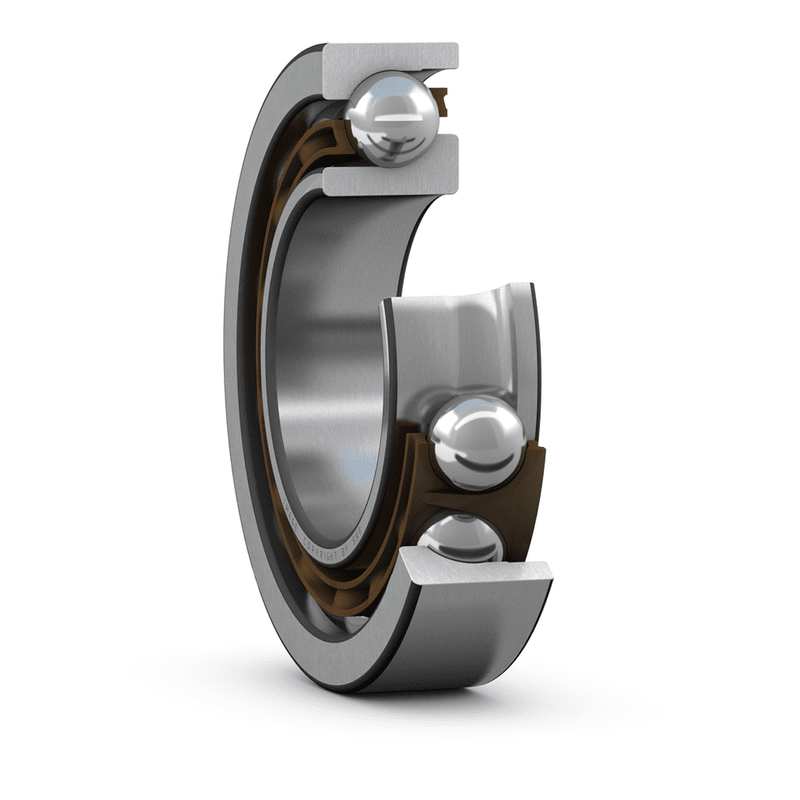

Angular contact ball bearings, single row 7302BECBP

SKU:ACB000036
Angular contact ball bearings, single row 7302BECBP
Call for price
Manufacturer : SKF

Description

Technical specification

Display in:

Dimensions - 7302 BECBP

DIMENSIONS

d
15 mm
D
42 mm
B
13 mm
d1
≈ 26 mm
d2
≈ 20.73 mm
D1
≈ 32.6 mm
a
18.6 mm
r1,2
min. 1 mm
r3,4
min. 0.6 mm
Abutment dimensions - 7302 BECBP

ABUTMENT DIMENSIONS

da
min. 21 mm
Da
max. 36 mm
Db
max. 38 mm
ra
max. 1 mm
rb
max. 0.6 mm

CALCULATION DATA

Basic dynamic load rating C
13 kN
Basic static load rating C0
6.7 kN
Fatigue load limit Pu
0.28 kN
Reference speed
22 000 r/min
Limiting speed
20 000 r/min
Calculation factor A
0.001
Calculation factor kr
0.1
Calculation factor e
1.14
SINGLE BEARING OR BEARING PAIR ARRANGED IN TANDEM
Calculation factor X
0.35
Calculation factor Y0
0.26
Calculation factor Y2
0.57
BEARING PAIR ARRANGED BACK-TO-BACK OR FACE-TO-FACE
Calculation factor X
0.57
Calculation factor Y0
0.52
Calculation factor Y1
0.55
Calculation factor Y2
0.93

MASS

Mass bearing
0.08 kg
