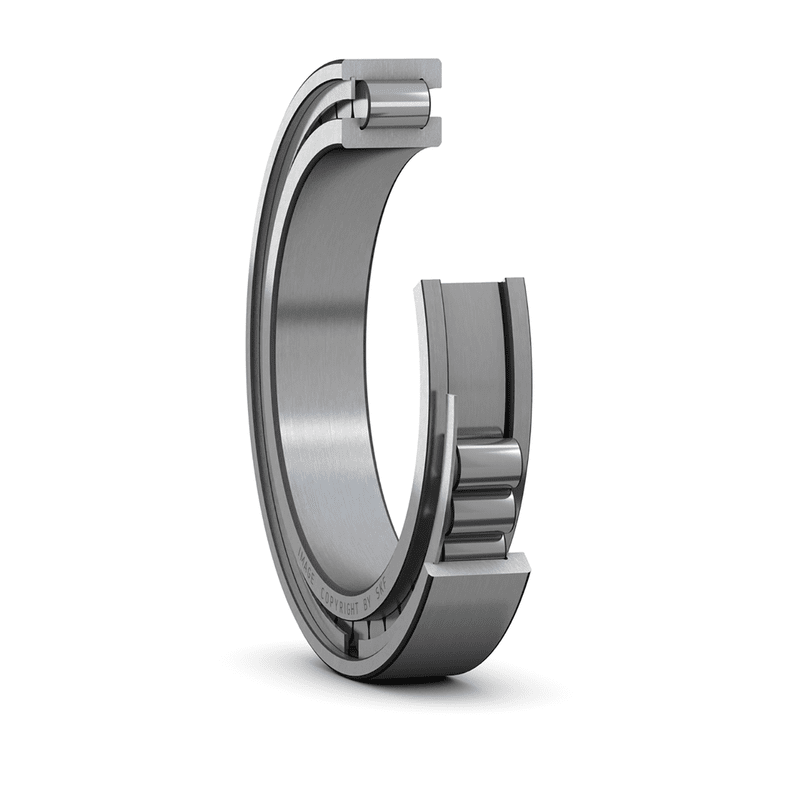

Cylindrical roller bearings, single row, full complement NCF2922CV
SKU:THI000001
Cylindrical roller bearings, single row, full complement NCF2922CV
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
110 mm
|
|
|---|---|---|
| D |
150 mm
|
|
| B |
24 mm
|
|
| d1 |
≈ 124 mm
|
|
| D1 |
≈ 136 mm
|
|
| E |
141.1 mm
|
|
| s |
max. 1.3 mm
|
|
| r1,2 |
min. 1.1 mm
|
|
| r3,4 |
min. 1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 116 mm
|
|
|---|---|---|
| das |
122 mm
|
|
| Da |
max. 144 mm
|
|
| Db |
max. 144 mm
|
|
| ra |
max. 1 mm
|
|
| rb |
max. 1 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
134 kN
|
|---|---|---|
| Basic static load rating | C0 |
220 kN
|
| Fatigue load limit | Pu |
26 kN
|
| Reference speed |
1 900 r/min
|
|
| Limiting speed |
2 400 r/min
|
|
| Calculation factor | kr |
0.2
|
| Calculation factor | e |
0.3
|
| Calculation factor | Y |
0.4
|
MASS
| Mass bearing |
1.17 kg
|
|---|
