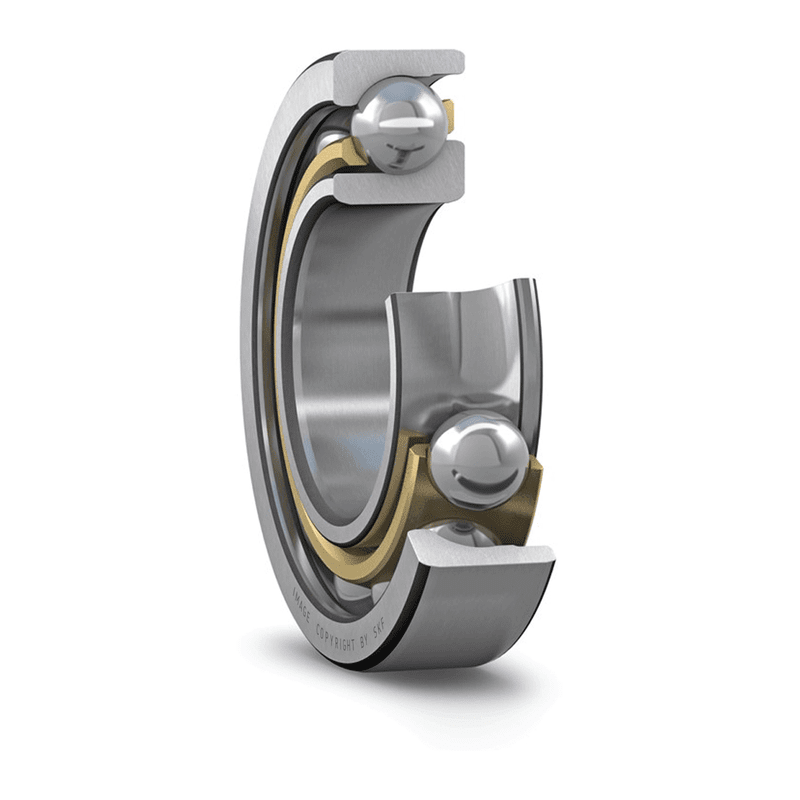

Angular contact ball bearings, single row 7309BECBM

SKU:ACB000038
Angular contact ball bearings, single row 7309BECBM
Call for price
Manufacturer : SKF

Description

Technical specification

Display in:

Dimensions - 7309 BECBM

DIMENSIONS

d
45 mm
D
100 mm
B
25 mm
d1
≈ 66.5 mm
d2
≈ 55.25 mm
D1
≈ 79.9 mm
a
43 mm
r1,2
min. 1.5 mm
r3,4
min. 1 mm
Abutment dimensions - 7309 BECBM

ABUTMENT DIMENSIONS

da
min. 54 mm
Da
max. 91 mm
Db
max. 94.4 mm
ra
max. 1.5 mm
rb
max. 1 mm

CALCULATION DATA

Basic dynamic load rating C
61 kN
Basic static load rating C0
40.5 kN
Fatigue load limit Pu
1.73 kN
Reference speed
8 500 r/min
Limiting speed
11 000 r/min
Calculation factor A
0.027
Calculation factor kr
0.1
Calculation factor e
1.14
SINGLE BEARING OR BEARING PAIR ARRANGED IN TANDEM
Calculation factor X
0.35
Calculation factor Y0
0.26
Calculation factor Y2
0.57
BEARING PAIR ARRANGED BACK-TO-BACK OR FACE-TO-FACE
Calculation factor X
0.57
Calculation factor Y0
0.52
Calculation factor Y1
0.55
Calculation factor Y2
0.93

MASS

Mass bearing
0.91 kg
