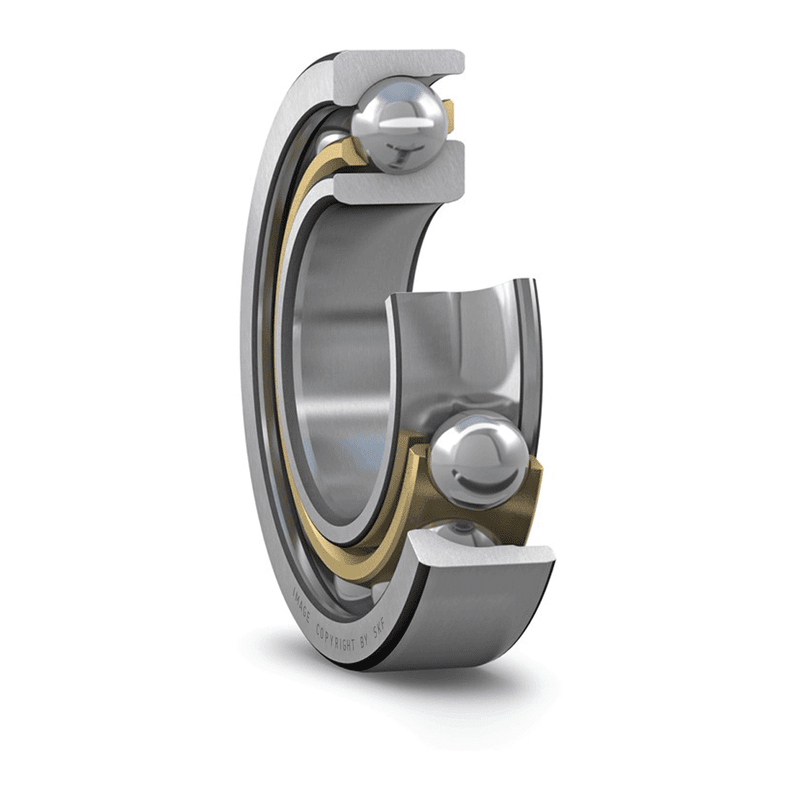

Angular Contact Bearing66
Angular Contact Bearing66

Angular contact ball bearings, single row 7317BEGAM

SKU:ACB000040
Angular contact ball bearings, single row 7317BEGAM
Call for price
Manufacturer : SKF

Description

Technical specification

Display in:

Dimensions - 7317 BEGAM

DIMENSIONS

d
85 mm
D
180 mm
B
41 mm
d1
≈ 122.3 mm
d2
≈ 103.03 mm
D1
≈ 144.95 mm
a
76 mm
r1,2
min. 3 mm
r3,4
min. 1.1 mm
Abutment dimensions - 7317 BEGAM

ABUTMENT DIMENSIONS

da
min. 99 mm
Da
max. 166 mm
Db
max. 173 mm
ra
max. 2.5 mm
rb
max. 1 mm

CALCULATION DATA

Basic dynamic load rating C
156 kN
Basic static load rating C0
132 kN
Fatigue load limit Pu
4.9 kN
Reference speed
4 500 r/min
Limiting speed
6 000 r/min
Calculation factor A
0.27
Calculation factor kr
0.1
Calculation factor e
1.14
SINGLE BEARING OR BEARING PAIR ARRANGED IN TANDEM
Calculation factor X
0.35
Calculation factor Y0
0.26
Calculation factor Y2
0.57
BEARING PAIR ARRANGED BACK-TO-BACK OR FACE-TO-FACE
Calculation factor X
0.57
Calculation factor Y0
0.52
Calculation factor Y1
0.55
Calculation factor Y2
0.93

MASS

Mass bearing
4.62 kg
