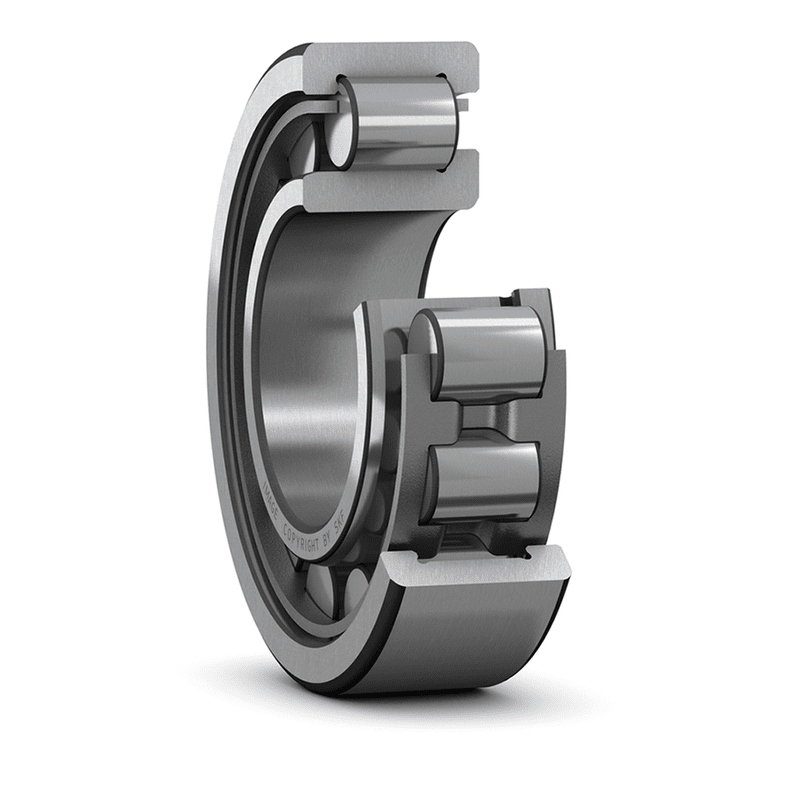

Cylindrical roller bearings, single row NJ220ECJ/C3
SKU:CRB000027
Cylindrical roller bearings, single row NJ220ECJ/C3
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
100 mm
|
|
|---|---|---|
| D |
180 mm
|
|
| B |
34 mm
|
|
| d1 |
≈ 127 mm
|
|
| D1 |
≈ 155.55 mm
|
|
| F |
119 mm
|
|
| r1,2 |
min. 2.1 mm
|
|
| r3,4 |
min. 2.1 mm
|
|
| s |
max. 1.7 mm
|
ABUTMENT DIMENSIONS
| da |
min. 113 mm
|
|
|---|---|---|
| da |
max. 116 mm
|
|
| db |
min. 130 mm
|
|
| Da |
max. 167.5 mm
|
|
| ra |
max. 2 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
285 kN
|
|---|---|---|
| Basic static load rating | C0 |
305 kN
|
| Fatigue load limit | Pu |
36.5 kN
|
| Reference speed |
4 000 r/min
|
|
| Limiting speed |
4 500 r/min
|
|
| Calculation factor | kr |
0.15
|
| Limiting value | e |
0.2
|
| Axial load factor | Y |
0.6
|
MASS
| Mass bearing |
3.55 kg
|
|---|
