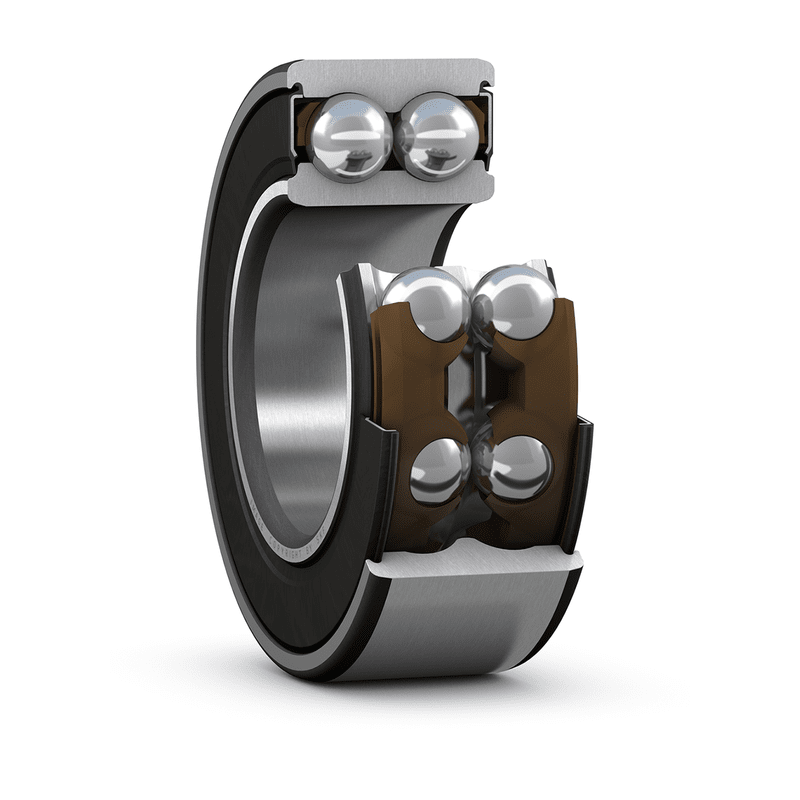

Angular contact ball bearings, double row 3206A-2RS1TN9/MT33
SKU:BEA000918
Angular contact ball bearings, double row 3206A-2RS1TN9/MT33
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
30 mm
|
|
|---|---|---|
| D |
62 mm
|
|
| B |
23.8 mm
|
|
| d2 |
≈ 38.7 mm
|
|
| D2 |
≈ 55.15 mm
|
|
| r1,2 |
min. 1 mm
|
|
| a |
36 mm
|
ABUTMENT DIMENSIONS
| da |
min. 35.6 mm
|
|
|---|---|---|
| da |
max. 38.5 mm
|
|
| Da |
max. 56.4 mm
|
|
| ra |
max. 1 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
30.5 kN
|
|---|---|---|
| Basic static load rating | C0 |
22 kN
|
| Fatigue load limit | Pu |
0.93 kN
|
| Limiting speed |
7 500 r/min
|
|
| Calculation factor | kr |
0.06
|
| Calculation factor | e |
0.8
|
| Calculation factor | X |
0.63
|
| Calculation factor | Y0 |
0.66
|
| Calculation factor | Y1 |
0.78
|
| Calculation factor | Y2 |
1.24
|
MASS
| Mass bearing |
0.29 kg
|
|---|
