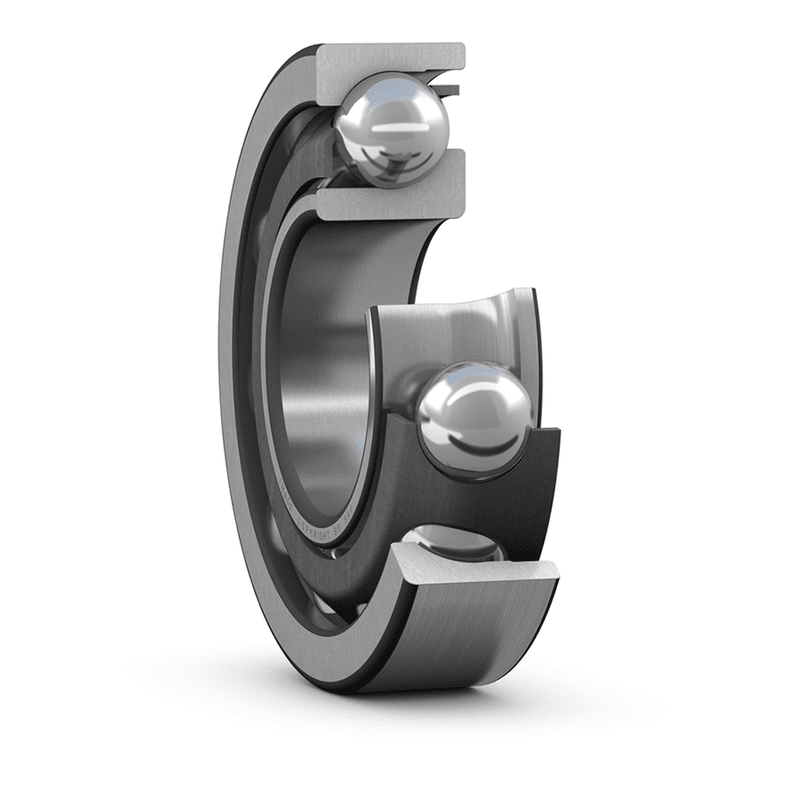

Angular contact ball bearings, single row 7318BECBJ

SKU:ACB000018
Angular contact ball bearings, single row 7318BECBJ
Call for price
Manufacturer : SKF

Description

Technical specification

Display in:

Dimensions - 7318 BECBJ

DIMENSIONS

d
90 mm
D
190 mm
B
43 mm
d1
≈ 129.2 mm
d2
≈ 108.97 mm
D1
≈ 153.1 mm
a
80 mm
r1,2
min. 3 mm
r3,4
min. 1.1 mm
Abutment dimensions - 7318 BECBJ

ABUTMENT DIMENSIONS

da
min. 104 mm
Da
max. 176 mm
Db
max. 183 mm
ra
max. 2.5 mm
rb
max. 1 mm

CALCULATION DATA

Basic dynamic load rating C
166 kN
Basic static load rating C0
146 kN
Fatigue load limit Pu
5.3 kN
Reference speed
4 300 r/min
Limiting speed
4 500 r/min
Calculation factor A
0.333
Calculation factor kr
0.1
Calculation factor e
1.14
SINGLE BEARING OR BEARING PAIR ARRANGED IN TANDEM
Calculation factor X
0.35
Calculation factor Y0
0.26
Calculation factor Y2
0.57
BEARING PAIR ARRANGED BACK-TO-BACK OR FACE-TO-FACE
Calculation factor X
0.57
Calculation factor Y0
0.52
Calculation factor Y1
0.55
Calculation factor Y2
0.93

MASS

Mass bearing
5.2 kg
