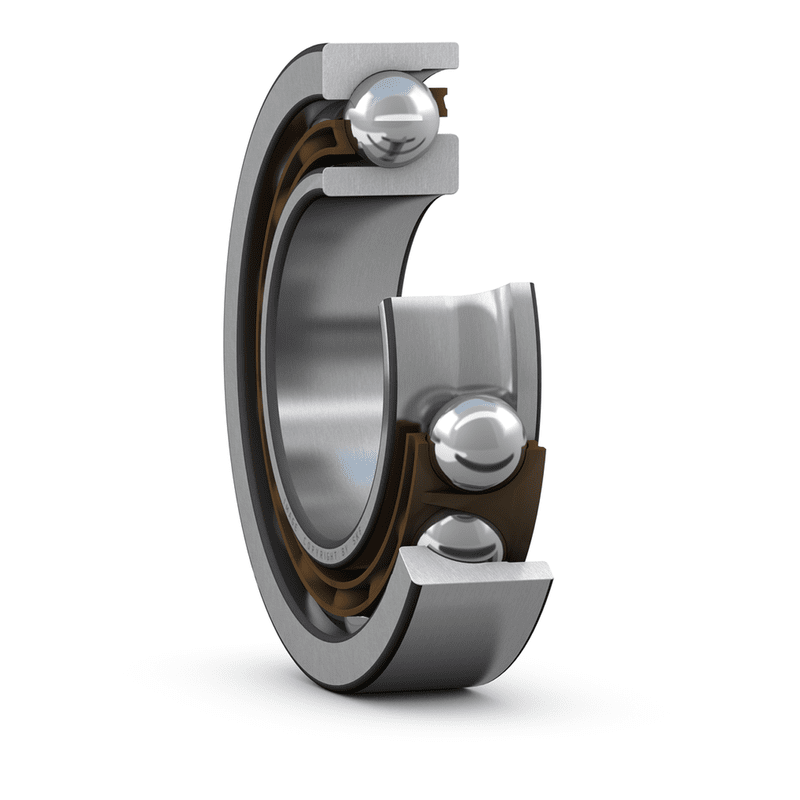

Angular contact ball bearings, single row 7310BEP

SKU:BEA000794
Angular contact ball bearings, single row 7310BEP
Call for price
Manufacturer : SKF

Description

Technical specification

Display in:

Dimensions - 7310 BEP

DIMENSIONS

d
50 mm
D
110 mm
B
27 mm
d1
≈ 73.8 mm
d2
≈ 61.13 mm
D1
≈ 88.8 mm
a
47 mm
r1,2
min. 2 mm
r3,4
min. 1 mm
Abutment dimensions - 7310 BEP

ABUTMENT DIMENSIONS

da
min. 61 mm
Da
max. 99 mm
Db
max. 104 mm
ra
max. 2 mm
rb
max. 1 mm

CALCULATION DATA

Basic dynamic load rating C
68.9 kN
Basic static load rating C0
47.5 kN
Fatigue load limit Pu
2 kN
Reference speed
7 500 r/min
Limiting speed
7 500 r/min
Calculation factor A
0.042
Calculation factor kr
0.1
Calculation factor e
1.14
SINGLE BEARING OR BEARING PAIR ARRANGED IN TANDEM
Calculation factor X
0.35
Calculation factor Y0
0.26
Calculation factor Y2
0.57
BEARING PAIR ARRANGED BACK-TO-BACK OR FACE-TO-FACE
Calculation factor X
0.57
Calculation factor Y0
0.52
Calculation factor Y1
0.55
Calculation factor Y2
0.93

MASS

Mass bearing
1.1 kg
