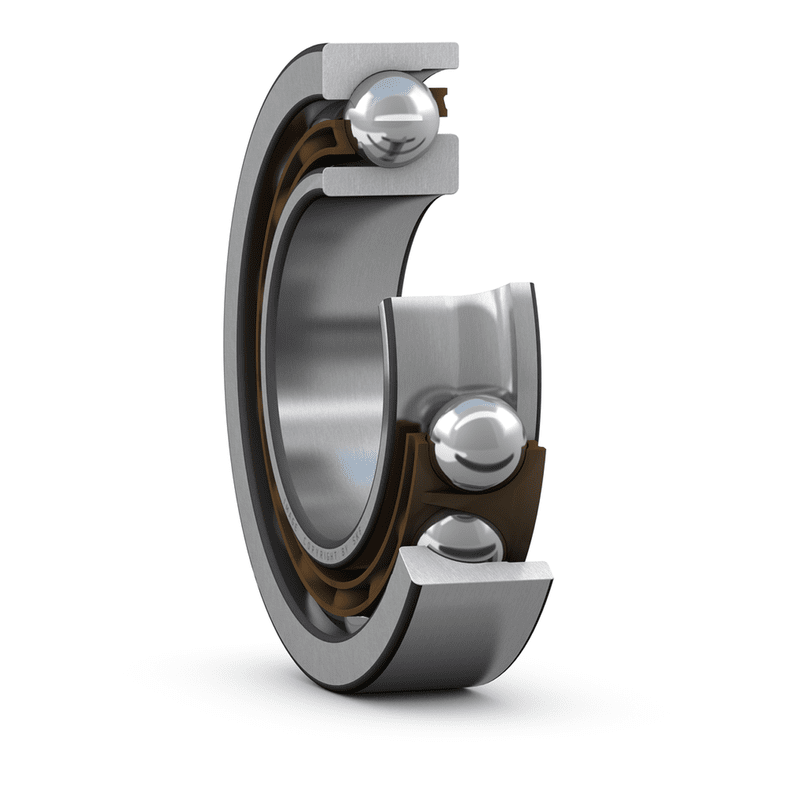

Angular contact ball bearings, single row 7308BEP

SKU:CLU000003
Angular contact ball bearings, single row 7308BEP
Call for price
Manufacturer : SKF

Description

Technical specification

Display in:

Dimensions - 7308 BEP

DIMENSIONS

d
40 mm
D
90 mm
B
23 mm
d1
≈ 59.7 mm
d2
≈ 49.55 mm
D1
≈ 71.6 mm
a
39 mm
r1,2
min. 1.5 mm
r3,4
min. 1 mm
Abutment dimensions - 7308 BEP

ABUTMENT DIMENSIONS

da
min. 49 mm
Da
max. 81 mm
Db
max. 84.4 mm
ra
max. 1.5 mm
rb
max. 1 mm

CALCULATION DATA

Basic dynamic load rating C
46.2 kN
Basic static load rating C0
30.5 kN
Fatigue load limit Pu
1.29 kN
Reference speed
9 500 r/min
Limiting speed
9 000 r/min
Calculation factor A
0.017
Calculation factor kr
0.1
Calculation factor e
1.14
SINGLE BEARING OR BEARING PAIR ARRANGED IN TANDEM
Calculation factor X
0.35
Calculation factor Y0
0.26
Calculation factor Y2
0.57
BEARING PAIR ARRANGED BACK-TO-BACK OR FACE-TO-FACE
Calculation factor X
0.57
Calculation factor Y0
0.52
Calculation factor Y1
0.55
Calculation factor Y2
0.93

MASS

Mass bearing
0.62 kg
