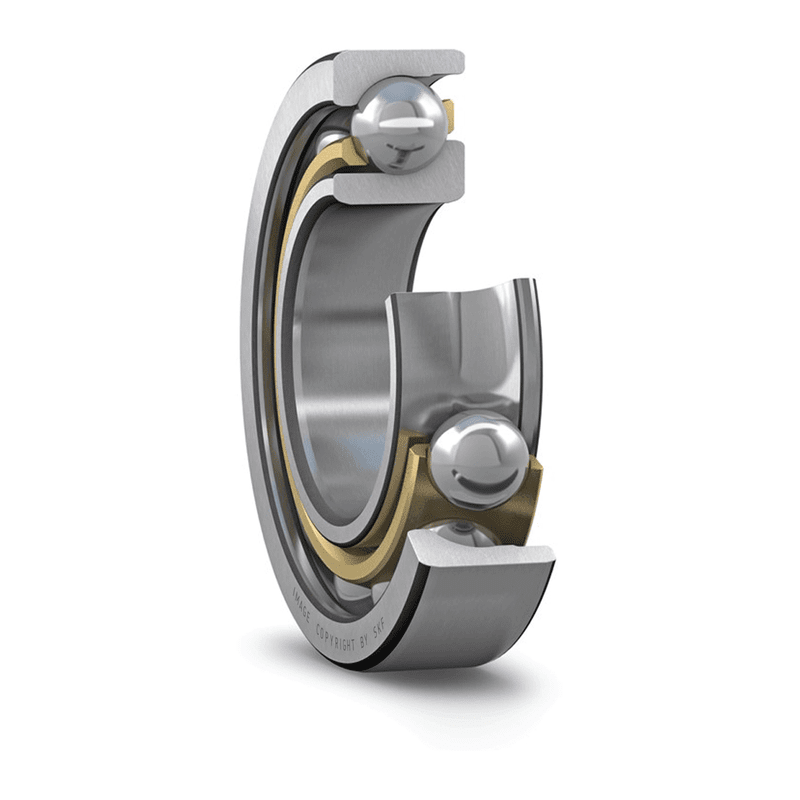

Angular contact ball bearings, single row 7324BCBM

SKU:BEA001343
Angular contact ball bearings, single row 7324BCBM
Call for price
Manufacturer : SKF

Description

Technical specification

Display in:

Dimensions - 7324 BCBM

DIMENSIONS

d
120 mm
D
260 mm
B
55 mm
d1
≈ 178.4 mm
d2
≈ 153.85 mm
D1
≈ 211 mm
a
107 mm
r1,2
min. 3 mm
r3,4
min. 1.5 mm
Abutment dimensions - 7324 BCBM

ABUTMENT DIMENSIONS

da
min. 134 mm
Da
max. 246 mm
Db
max. 253 mm
ra
max. 2.5 mm
rb
max. 1 mm

CALCULATION DATA

Basic dynamic load rating C
238 kN
Basic static load rating C0
250 kN
Fatigue load limit Pu
7.65 kN
Reference speed
3 000 r/min
Limiting speed
3 600 r/min
Calculation factor A
1.11
Calculation factor kr
0.09
Calculation factor e
1.14
SINGLE BEARING OR BEARING PAIR ARRANGED IN TANDEM
Calculation factor X
0.35
Calculation factor Y0
0.26
Calculation factor Y2
0.57
BEARING PAIR ARRANGED BACK-TO-BACK OR FACE-TO-FACE
Calculation factor X
0.57
Calculation factor Y0
0.52
Calculation factor Y1
0.55
Calculation factor Y2
0.93

MASS

Mass bearing
14.5 kg
