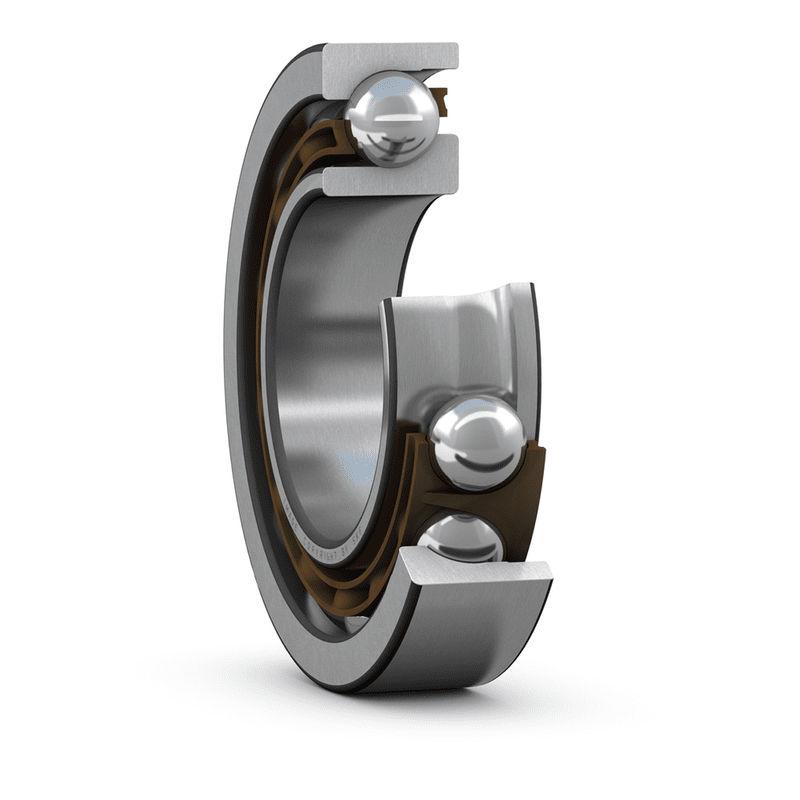

Angular contact ball bearings, single row 7207 BEP

SKU:BEA001489
Angular contact ball bearings, single row 7207 BEP
Call for price
Manufacturer : SKF

Description

Technical specification

Display in:

Dimensions - 7207 BEP

DIMENSIONS

d
35 mm
D
72 mm
B
17 mm
d1
≈ 49.65 mm
d2
≈ 41.96 mm
D1
≈ 58.25 mm
a
31 mm
r1,2
min. 1.1 mm
r3,4
min. 0.6 mm
Abutment dimensions - 7207 BEP

ABUTMENT DIMENSIONS

da
min. 42 mm
Da
max. 65 mm
Db
max. 67.8 mm
ra
max. 1 mm
rb
max. 0.6 mm

CALCULATION DATA

Basic dynamic load rating C
29.1 kN
Basic static load rating C0
19 kN
Fatigue load limit Pu
0.815 kN
Reference speed
11 000 r/min
Limiting speed
11 000 r/min
Calculation factor A
0.007
Calculation factor kr
0.095
Calculation factor e
1.14
SINGLE BEARING OR BEARING PAIR ARRANGED IN TANDEM
Calculation factor X
0.35
Calculation factor Y0
0.26
Calculation factor Y2
0.57
BEARING PAIR ARRANGED BACK-TO-BACK OR FACE-TO-FACE
Calculation factor X
0.57
Calculation factor Y0
0.52
Calculation factor Y1
0.55
Calculation factor Y2
0.93

MASS

Mass bearing
0.28 kg
