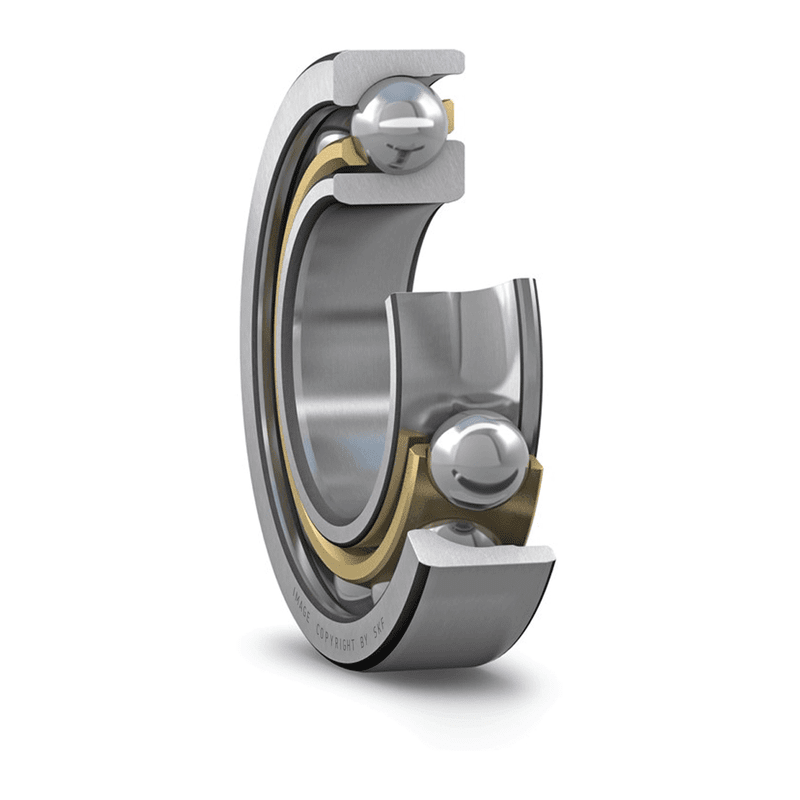

Angular contact ball bearings, single row 7234 BCBM

SKU:BEA000924
Angular contact ball bearings, single row 7234 BCBM
Call for price
Manufacturer : SKF

Description

Technical specification

Display in:

Dimensions - 7234 BCBM

DIMENSIONS

d
170 mm
D
310 mm
B
52 mm
d1
≈ 227.4 mm
d2
≈ 202.05 mm
D1
≈ 261.25 mm
a
127 mm
r1,2
min. 4 mm
r3,4
min. 1.5 mm
Abutment dimensions - 7234 BCBM

ABUTMENT DIMENSIONS

da
min. 187 mm
Da
max. 293 mm
Db
max. 301 mm
ra
max. 3 mm
rb
max. 1.5 mm

CALCULATION DATA

Basic dynamic load rating C
281 kN
Basic static load rating C0
345 kN
Fatigue load limit Pu
9.5 kN
Reference speed
2 400 r/min
Limiting speed
2 800 r/min
Calculation factor A
2
Calculation factor kr
0.08
Calculation factor e
1.14
SINGLE BEARING OR BEARING PAIR ARRANGED IN TANDEM
Calculation factor X
0.35
Calculation factor Y0
0.26
Calculation factor Y2
0.57
BEARING PAIR ARRANGED BACK-TO-BACK OR FACE-TO-FACE
Calculation factor X
0.57
Calculation factor Y0
0.52
Calculation factor Y1
0.55
Calculation factor Y2
0.93

MASS

Mass bearing
17.5 kg
