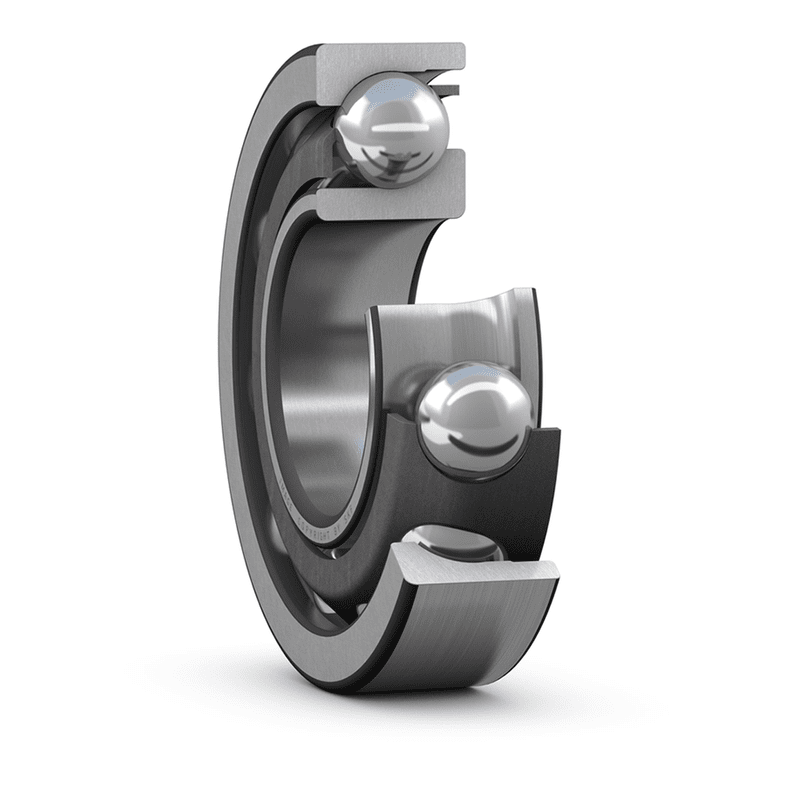

Angular contact ball bearings, single row 7314BECBJ

SKU:BEA001011
Angular contact ball bearings, single row 7314BECBJ
Call for price
Manufacturer : SKF

Description

Technical specification

Display in:

Dimensions - 7314 BECBJ

DIMENSIONS

d
70 mm
D
150 mm
B
35 mm
d1
≈ 101.1 mm
d2
≈ 84.4 mm
D1
≈ 121.5 mm
a
64 mm
r1,2
min. 2.1 mm
r3,4
min. 1.1 mm
Abutment dimensions - 7314 BECBJ

ABUTMENT DIMENSIONS

da
min. 82 mm
Da
max. 138 mm
Db
max. 143 mm
ra
max. 2 mm
rb
max. 1 mm

CALCULATION DATA

Basic dynamic load rating C
127 kN
Basic static load rating C0
98 kN
Fatigue load limit Pu
3.9 kN
Reference speed
5 600 r/min
Limiting speed
5 600 r/min
Calculation factor A
0.145
Calculation factor kr
0.1
Calculation factor e
1.14
SINGLE BEARING OR BEARING PAIR ARRANGED IN TANDEM
Calculation factor X
0.35
Calculation factor Y0
0.26
Calculation factor Y2
0.57
BEARING PAIR ARRANGED BACK-TO-BACK OR FACE-TO-FACE
Calculation factor X
0.57
Calculation factor Y0
0.52
Calculation factor Y1
0.55
Calculation factor Y2
0.93

MASS

Mass bearing
2.65 kg
