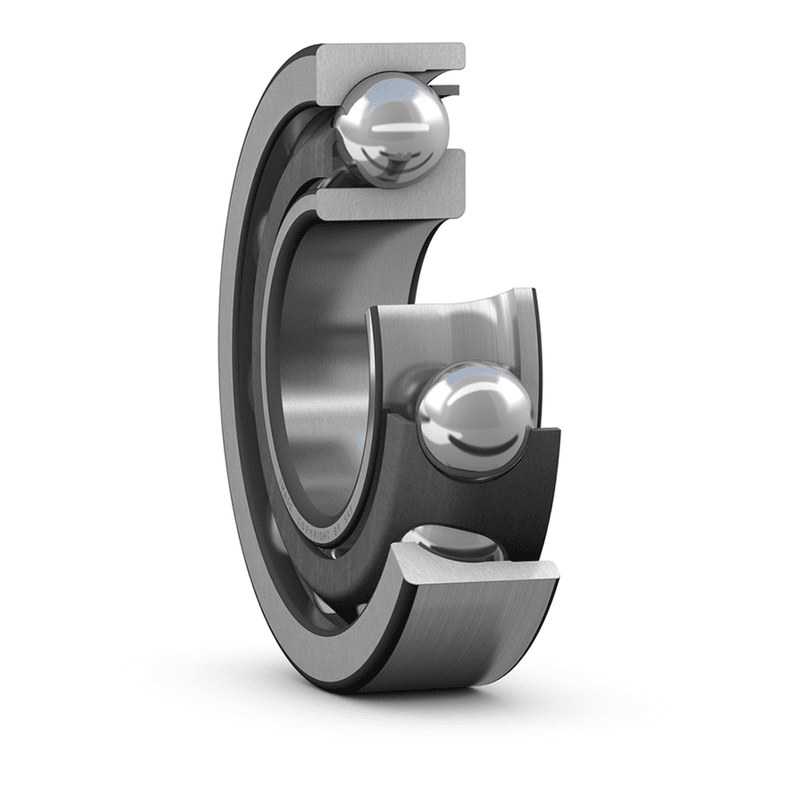

Angular contact ball bearings, single row 7217BECBJ

SKU:BEA001012
Angular contact ball bearings, single row 7217BECBJ
Call for price
Manufacturer : SKF

Description

Technical specification

Display in:

Dimensions - 7217 BECBJ

DIMENSIONS

d
85 mm
D
150 mm
B
28 mm
d1
≈ 110.1 mm
d2
≈ 97.02 mm
D1
≈ 126.7 mm
a
63 mm
r1,2
min. 2 mm
r3,4
min. 1 mm
Abutment dimensions - 7217 BECBJ

ABUTMENT DIMENSIONS

da
min. 96 mm
Da
max. 139 mm
Db
max. 144 mm
ra
max. 2 mm
rb
max. 1 mm

CALCULATION DATA

Basic dynamic load rating C
102 kN
Basic static load rating C0
90 kN
Fatigue load limit Pu
3.55 kN
Reference speed
5 300 r/min
Limiting speed
5 300 r/min
Calculation factor A
0.114
Calculation factor kr
0.095
Calculation factor e
1.14
SINGLE BEARING OR BEARING PAIR ARRANGED IN TANDEM
Calculation factor X
0.35
Calculation factor Y0
0.26
Calculation factor Y2
0.57
BEARING PAIR ARRANGED BACK-TO-BACK OR FACE-TO-FACE
Calculation factor X
0.57
Calculation factor Y0
0.52
Calculation factor Y1
0.55
Calculation factor Y2
0.93

MASS

Mass bearing
1.85 kg
