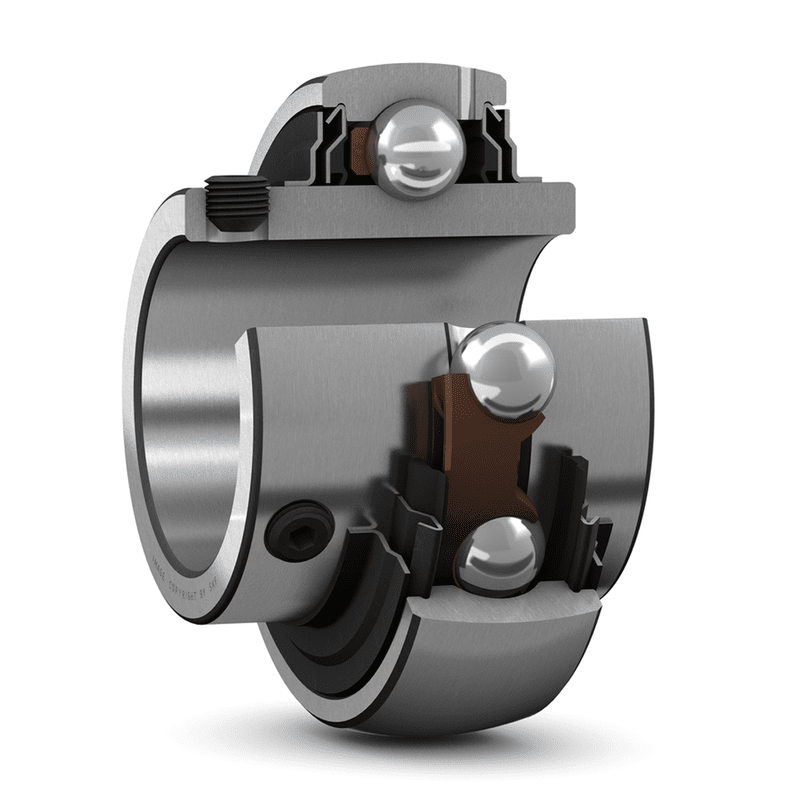

Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
30 mm
|
|
|---|---|---|
| D |
62 mm
|
|
| B |
38.1 mm
|
|
| C |
18 mm
|
|
| d1 |
≈ 39.7 mm
|
|
| B4 |
5 mm
|
|
| r1,2 |
min. 0.6 mm
|
|
| s1 |
22.2 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
19.5 kN
|
|---|---|---|
| Basic static load rating | C0 |
11.2 kN
|
| Fatigue load limit | Pu |
0.475 kN
|
| Limiting speed1) |
6 300 r/min
|
|
| Calculation factor | f0 |
14
|
MASS
| Mass bearing |
0.31 kg
|
|---|
MOUNTING INFORMATION
| Set screw | G2 |
M6x0.75
|
|---|---|---|
| Hexagonal key size for set screw | N |
3 mm
|
| Recommended tightening torque for set screw |
4 N·m
|
