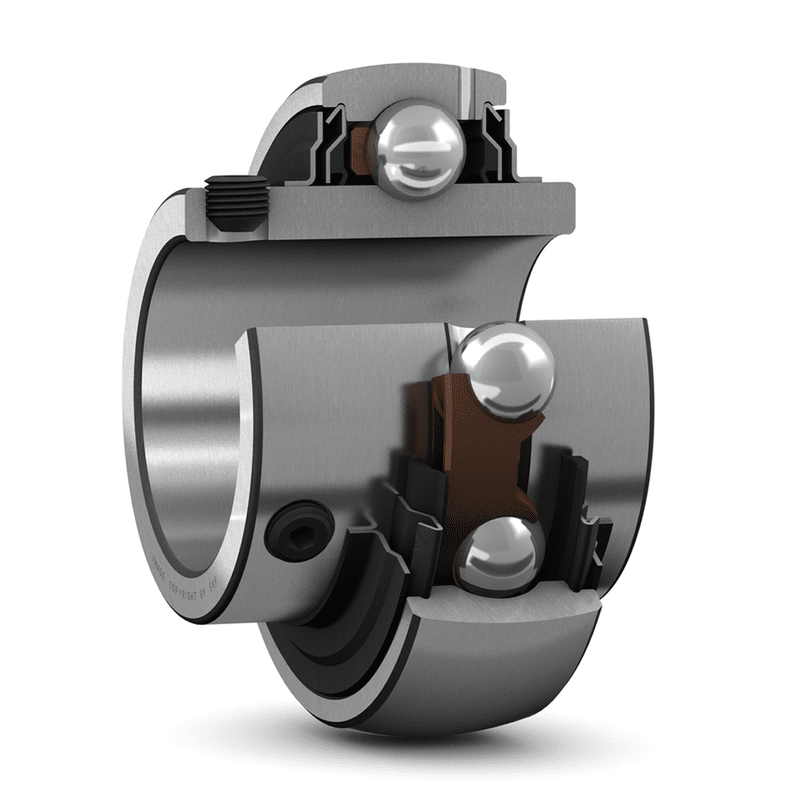

Description
Technical specification
DIMENSIONS
| d |
35 mm
|
|
|---|---|---|
| D |
72 mm
|
|
| B |
42.9 mm
|
|
| C |
19 mm
|
|
| d1 |
≈ 46.1 mm
|
|
| B4 |
6 mm
|
|
| r1,2 |
min. 1 mm
|
|
| s1 |
25.4 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
25.5 kN
|
|---|---|---|
| Basic static load rating | C0 |
15.3 kN
|
| Fatigue load limit | Pu |
0.655 kN
|
| Limiting speed1) |
5 300 r/min
|
|
| Calculation factor | f0 |
14
|
MASS
| Mass bearing |
0.45 kg
|
|---|
MOUNTING INFORMATION
| Set screw | G2 |
M6x0.75
|
|---|---|---|
| Hexagonal key size for set screw | N |
3 mm
|
| Recommended tightening torque for set screw |
4 N·m
|
