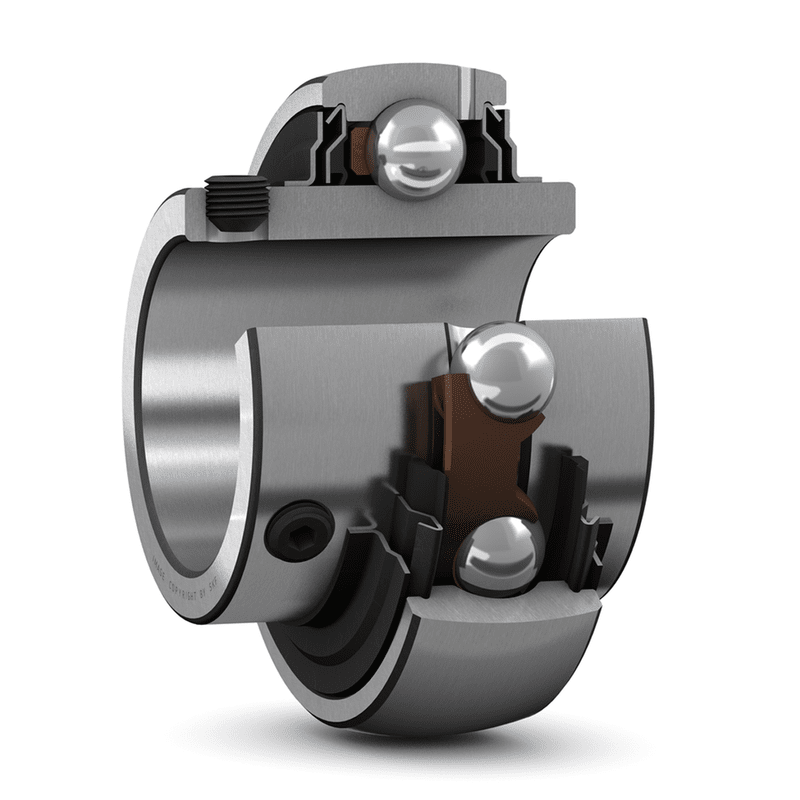

Description
Technical specification
DIMENSIONS
| d |
40 mm
|
|
|---|---|---|
| D |
80 mm
|
|
| B |
49.2 mm
|
|
| C |
21 mm
|
|
| d1 |
≈ 51.8 mm
|
|
| B4 |
8 mm
|
|
| r1,2 |
min. 1 mm
|
|
| s1 |
30.2 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
30.7 kN
|
|---|---|---|
| Basic static load rating | C0 |
19 kN
|
| Fatigue load limit | Pu |
0.8 kN
|
| Limiting speed1) |
4 800 r/min
|
|
| Calculation factor | f0 |
14
|
MASS
| Mass bearing |
0.6 kg
|
|---|
MOUNTING INFORMATION
| Set screw | G2 |
M8x1
|
|---|---|---|
| Hexagonal key size for set screw | N |
4 mm
|
| Recommended tightening torque for set screw |
6.5 N·m
|
