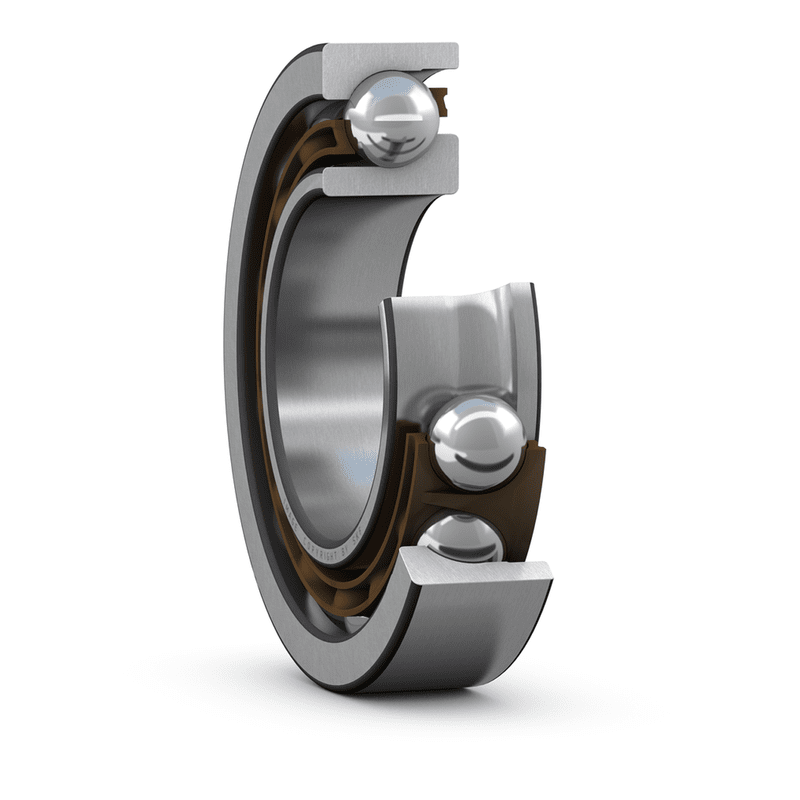

Angular contact ball bearings, single row 7305BEP
SKU:ANG000019
Angular contact ball bearings, single row 7305BEP
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
25 mm
|
|
|---|---|---|
| D |
62 mm
|
|
| B |
17 mm
|
|
| d1 |
≈ 39.75 mm
|
|
| d2 |
≈ 32.38 mm
|
|
| D1 |
≈ 48.25 mm
|
|
| a |
26.8 mm
|
|
| r1,2 |
min. 1.1 mm
|
|
| r3,4 |
min. 0.6 mm
|
ABUTMENT DIMENSIONS
| da |
min. 32 mm
|
|
|---|---|---|
| Da |
max. 55 mm
|
|
| Db |
max. 57.8 mm
|
|
| ra |
max. 1 mm
|
|
| rb |
max. 0.6 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
24.2 kN
|
|---|---|---|
| Basic static load rating | C0 |
14 kN
|
| Fatigue load limit | Pu |
0.6 kN
|
| Reference speed |
14 000 r/min
|
|
| Limiting speed |
14 000 r/min
|
|
| Calculation factor | A |
0.004
|
| Calculation factor | kr |
0.1
|
| Calculation factor | e |
1.14
|
| Calculation factor | X |
0.35
|
|---|---|---|
| Calculation factor | Y0 |
0.26
|
| Calculation factor | Y2 |
0.57
|
| Calculation factor | X |
0.57
|
|---|---|---|
| Calculation factor | Y0 |
0.52
|
| Calculation factor | Y1 |
0.55
|
| Calculation factor | Y2 |
0.93
|
MASS
| Mass bearing |
0.23 kg
|
|---|
