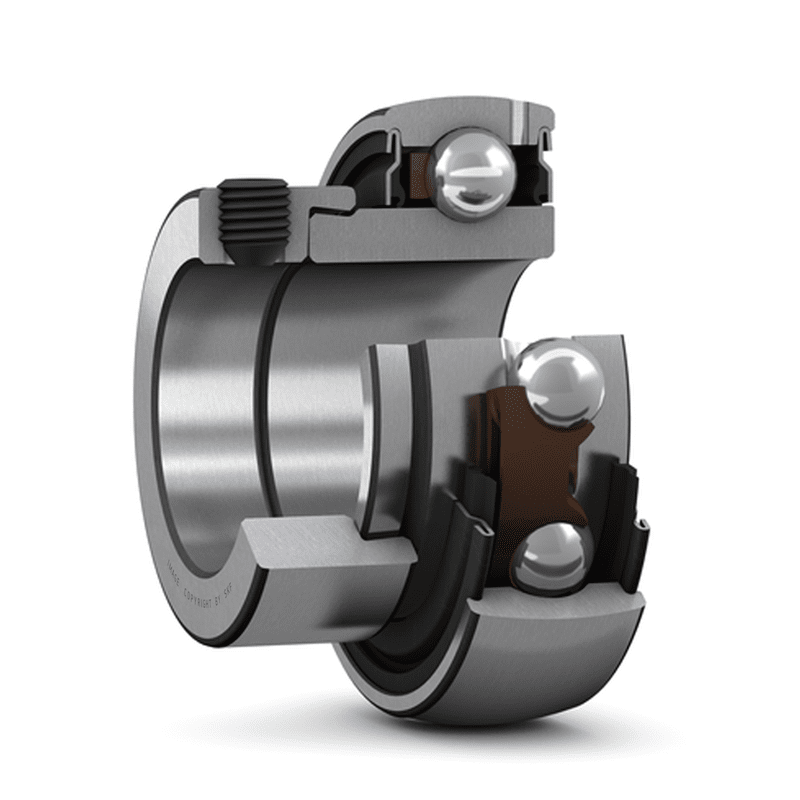

Description
Technical specification
DIMENSIONS
| d |
15 mm
|
|
|---|---|---|
| D |
40 mm
|
|
| B1 |
28.6 mm
|
|
| B |
19.1 mm
|
|
| C |
12 mm
|
|
| d1 |
≈ 24.2 mm
|
|
| d2 |
27.2 mm
|
|
| B4 |
4.75 mm
|
|
| r1,2 |
min. 0.3 mm
|
|
| s1 |
22.1 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
9.56 kN
|
|---|---|---|
| Basic static load rating | C0 |
4.75 kN
|
| Fatigue load limit | Pu |
0.2 kN
|
| Limiting speed1) |
9 500 r/min
|
|
| Calculation factor | f0 |
13
|
MASS
| Mass bearing |
0.12 kg
|
|---|
MOUNTING INFORMATION
| Set screw | G2 |
M6x0.75
|
|---|---|---|
| Hexagonal key size for set screw | N |
3 mm
|
| Recommended tightening torque for set screw |
4 N·m
|
